(WRG modular, 6m) FRAME rear, aluminium, 3m

https://unicat.msf.org/cat/product/64158
NST CSHETENHW6SR

Valid Article

Former Code(s): CSHEZBE0257
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

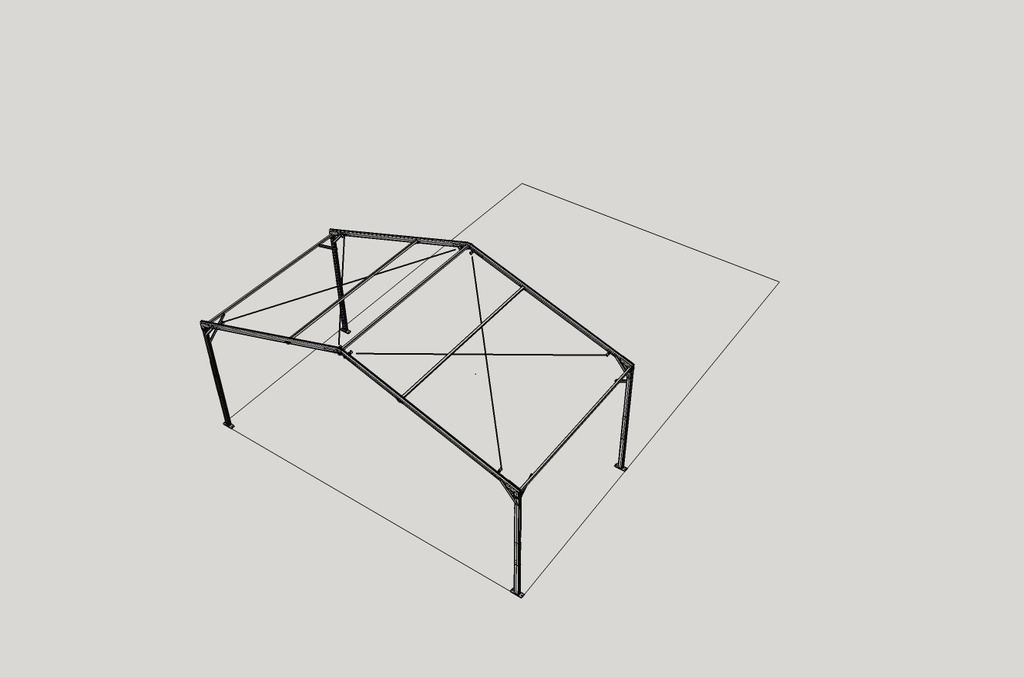

(WRG modular, 6m) FRAME rear, aluminium, 3m

Form

  • Key features:
    • Length base tent: 9 meter (in three segment of 3m each);
    • Width: 6 meter;
    • Height side walls: 2.35 meter;
    • Height roof ridge (highest point): 3.3 meter;
    • Component material: PVC (standard) and insulated sandwich panels (optional);
    • Frame material: High quality aluminum (standard);
    • Easily cleanable with detergent, e.g. Chlorine;
    • Sections are easily replaceable, in case of e.g. damage;
    • Modular expandable and swappable;
    • Minimum lifespan PVC and aluminum: At least 15 years.

Fit

  • Fixation to frame by keder profiles. In combination with its unique Vario-Nut feature to allow fixation of shelves, medical instruments and other objects to the legs and roof beams of the tent, without the use of any tools.

  • Compatible with WRG modular tent 6m and check the related articles and accessories for compatibility with other articles.

Function

  • The tents are specifically developed for field hospitals. However the durability, modularity and straight walls make it fit for nearly any type of functionality (logistics, storage, office, housing, etc.).
  • Due to the modular features the tent can easily be extended or adapted in a later stage or be disassembled and relocated for other use and purposes.
  • Fire retardant PVC: DIN 4102 B1;
  • UV resistant PVC;
  • Wind load resistance: 0.5 kN/m2 (Certified by TÜV);
  • Installation requirements:
    • Time needed for installation: Approx. 4 hours;
    • Needed amount of workers: 4 persons (preferably).
