WBC DIFFERENTIAL ANALYZER (Hemocue WBC DIFF)

https://unicat.msf.org/cat/product/65508
STD ELAEHAAE6--

Valid Article

Former Code(s): ELAEZBE1018 ELAEZNL0685 ELAEHAEE5--
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
P
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Documents See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

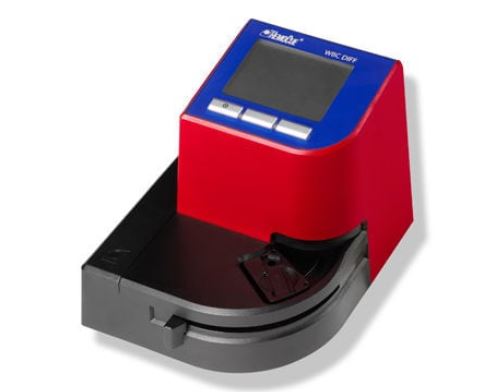

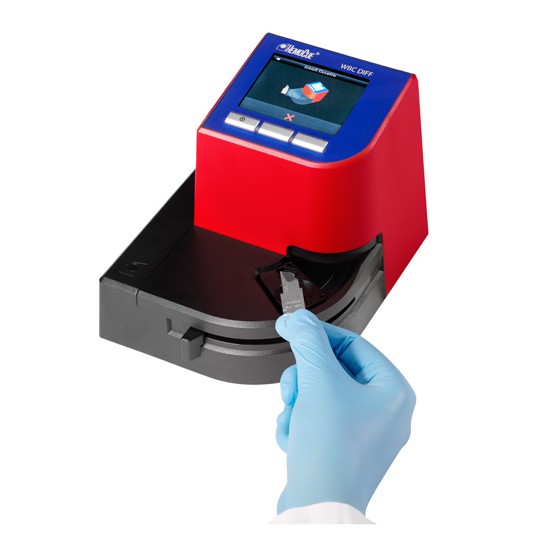

DIFFERENTIAL WBC ANALYZER (Hemocue WBC Diff)

Definition

An electrically powered device for near patients quantitative determination of white blood cells (WBC) in capillary or venous whole blood.

The machine gives the number of white blood cells and the 5-parameter formula (polynuclear: neutrophils, eosinophils, basophils, lymphocytes and monocytes).

Specifications

Parameters: WBC = polynuclear: neutrophils, eosinophils, basophils, lymphocytes and monocytes

Some restricted information has been hidden. Sign in to see this information

Components

  • Haematological cell analyzer‌
  • Quick reference guide
  • Operating manual
  • AC adapter (country specific)

Technical specifications

  • Measuring range: 0.3-30.0 x 109 / l (300-30000/mm³, 300-30000/µl)
  • Time to result: within 5 minutes
  • Sample:
    • capillary or venous (EDTA) whole blood
    • volume: 10 µl
  • Quality control: built-in self test
  • Interfaces: RS 232 (printer)
  • Battery powered
    • AC adaptor: Input: 100 - 240 V, 50-60 Hz, < 500 mA
    • 6 AA batteries type C (LR14/HR14)
  • Operating temperature: 18 to 30°C, <90% non-condensing humidity (see details below)

Dimensions

  • Dimensions: 188 x 157 x 155 mm
  • Weight: 1300 g with batteries installed

To be Ordered Separately

  • Microcuvettes (ELAEHAAT602)
  • Control solutions: low, normal and high (ELAEHAAT601)
  • Safety lancets (STSSLANCSAM2)
  • Cleaner WBC (ELAEHAAC602)
  • Batterie Type C (LR14/HR14) (x6)

(see related items)

Instructions for use

Read carefully the user manual

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Precautions for Use

  • Operating temperature: Venous/capillary sample in EDTA tube: 18 to 30°C, <90% non-condensing humidity
  • Capillary sample from fingerstick: 18 to 25°C, <90% non-condensing humidity.
  • The HemoCue WBC DIFF system is indicated for use in clinical laboratories and near patient testing in professional health care settings on pediatric (> 3 months) and adult patients.
  • The rechargeable batteries need to be charged in the external charger. The transformer doesn't charge the batteries when they are inside the equipment.

Storage

Storage at 4 to 50°C and humidity up to 90% non condensing humidity for maximum 4 weeks
