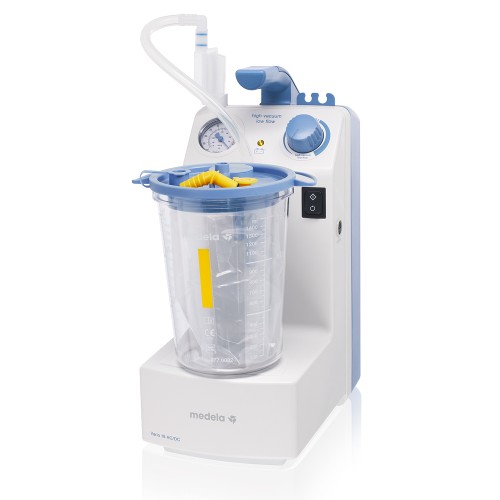

SUCTION PUMP, ELECTRICAL (Medela Vario18), 100-230V,50-60Hz

STD EEMDPUME4--

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z120105 - Surgical medical aspirators
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Documents See Related

Add article to list



Add Kit To Wishlist

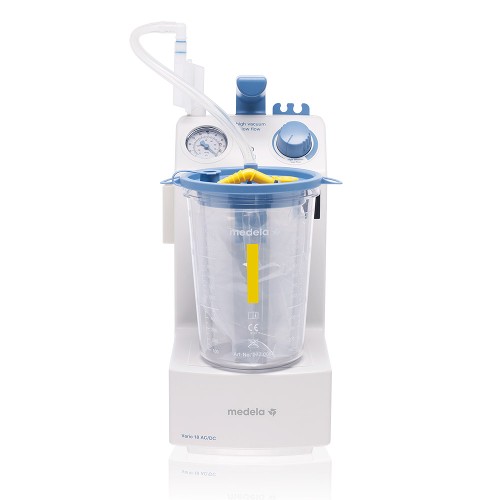

SUCTION PUMP, ELECTRICAL (Vario 18)

Definition

An assembly of devices designed to evacuate fluid, tissue, gas, or other foreign materials from a body cavity or lumen by means of suction. It generally consists of a mains electricity (AC-powered) suction pump, tubing, plastic/glass collection container(s), a vacuum gauge, a vacuum control knob, an overflow trap, a moisture filter, and a microbial filter. The pump creates a vacuum in the suction tubing, which is inserted into the body for the removal of materials into the collection container. This system can be used in a wide variety of settings within healthcare facilities.

Synonym

Secretion aspiration unit

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

ISO 10079-1, 2022, edition 4, Medical suction equipment -- Part 1: Electrically powered suction equipment

Quality Standards Comment

  • ISO 10079-4:2021: Medical suction equipment — Part 4: General requirements

Components

  • 1 x suction pump with rechargeable battery (CA /CC) ref. 026.5110
  • 2 x jar, 1l, polysulfone, autoclavable, ref. 077.0110
  • 2 x lid with connection 6-10mm, + overflow device, ref. 077.0420
  • 1 x safety overflow bottle ref. 200.1733
  • 10 x overflow protection device ref. 077.1021
  • 10 x clip for lid ref. 077.1013
  • 10 x Fuse T800 mA, d.5x20m, ref. 099.0133
  • 8 x Vario Microfuse 099.0342
  • 1 x car cable 12VCC, ref. 077.0832
  • 1 x transport bag ref. 077.0831
  • ​2x silicone tubing, Ø 7/12mm, 100cm, reusable ref 077.0901
  • 1x set of 5 disposable overflow protection / virus filters ref 101034038
  • 1 x maintenance manual, ref. 177.2610

Technical specifications

  • Maximal Depression -75 kPa /-563 mmHG
  • Aspiration capacity 18l/min
  • Vacuometer in kPa and mm HgG
  • Protection against solid/ liquid ingress: IPX1
  • Protection against electric shock
    • Class II
    • Type CF
  • Power supply
    • mains: 100 V - 240 V AC ± 10% without commutation, 50/60 Hz
    • via the integrated rechargeable battery (supplied with battery charger)
      • 12 V DC, 2400 mAh, NiCd
      • operation time: between 30 minutes to 1 hour, charging period: 5 hours
    • via the cigarette lighter of a vehicle (supplied with connection cable): 12 V DC

Dimensions

  • Dimensions: 380 x 170 x 285 mm
  • Packaging dimensions: 400 x 400 x 470 mm
  • Net Weight: 5.1 kg

Instructions for use

The suction hose should never come into direct contact with secretion to be extracted (use a suction tube).

The collection bottle must be emptied as soon as it is half-filled.

The antibacterial filter must be replaced at least once a week, and every time it has been in contact with the liquid.

The safety device protects the pump against overflow: suction is interrupted when foam or liquids reach the safety level in the small jar. All components are reusable and can be steam sterilized at 134°C.

Precautions for Use

Contact your biomedical officer in order to see the need to protect the apparatus with a double conversion UPS (see related articles below).

Maintenance

The collection bottle must be pre-disinfected, cleaned and sterilised by steam autoclave.

(Cf Introduction: Disinfection and sterilization in the field)

MSF requirements

Portable electrical suction unit for anaesthesia.

Device which has the same function as the "Twin Pump" but which is much more comfortable.
