CHLORINE PRODUCTION (Mini-Wata) set

Form

Mini-WATA™ unit.

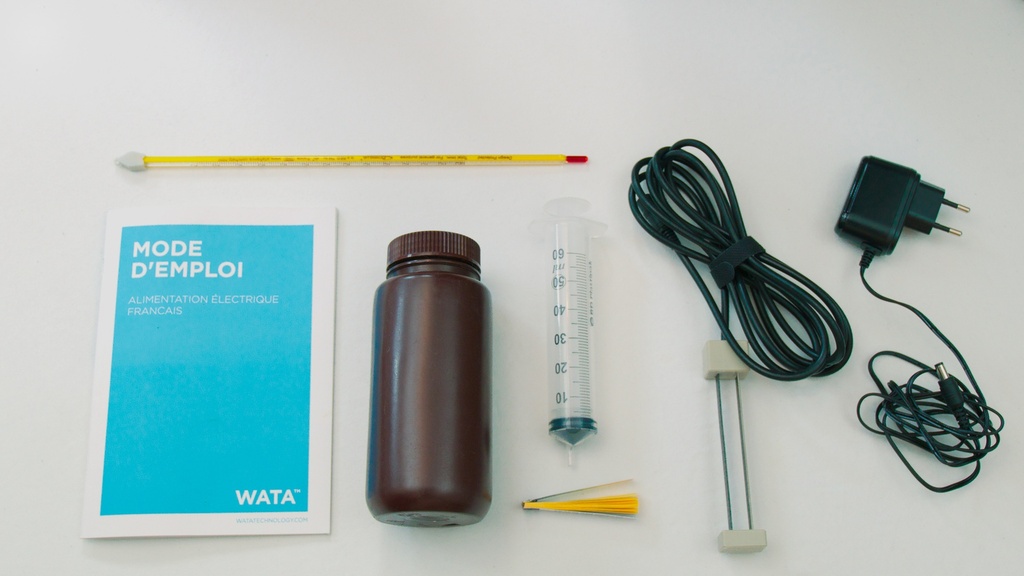

Content:

  • 1 power supply 5V/1A
  • 1 syringe of 50ml
  • 1 production bottle
  • 1 kit WataTest™
  • 1 kit WataBlue™
  • 1 pH test
  • 1 user manual

Specifications:

  • Production time: 3h
  • Active chlorine volume (6g/l): 0.5l
  • Drinking water application: can treat up to 2000l
  • Disinfection application (per cycle):
    - 0.5l of 0.6% solution
    - 1.5l of 0.1% solution
    - 5l of 0.05% solution
  • Max. number of cycles over 24h: 8
  • Nominal power rating: 10W
  • Electrical power supplied: 5V/2A
  • Dimensions: 130 x 30 x 20 mm
  • Weight: 0.7 kg

Fit

-

Function

This device produces a 0.6% concentrated sodium hypochlorite solution (or 6 g of active chlorine per litre) from brine. It uses the electrolysis process and requires only clear water (< 5NTU) and salt. It is an interesting alternative to MSF's standard chlorinated product (Nadcc / HTH) and allows the mission to be autonomous and free from transport and storage constraints. This version is the smallest version of the WATA range.
