Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
Z12011385 - Cleaning, disinfection and sterilisation instruments - consumables
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Add Kit To Wishlist




Sterilization indicator to be placed inside individual load items and to assess attainment of the critical process variables at the point of placement. This indicator reacts to all critical process variables.

Requirements according to Type 5 of chemical indicators for steam sterilization.


Sterilisation chemical indicator type 5, Type 5 integrating indicator


Type 5 integrating indicators are chemical indicators (CI) designed to reach their endpoint response when exposed to critical variables: time, temperature and the presence of steam.

Stated value (SV): value or values of a critical process variable at which the indicator is designed to reach its endpoint as defined by the manufacturer.

Some restricted information has been hidden. Sign in to see this information

Quality standards

ISO 11140-1, 2014, edition 3, (confirmed 2021) Sterilization of health care products – chemical indicators –Part 1: General requirements

Technical specifications

  • Indicator clearly marked with type of process for which it is intended to be used:
    • number indicating the type of indicator: 5
    • combination of a letter plus a number to indicate a category: i5
  • Abbreviated descriptions of the process shall be in accordance with the following symbol: "STEAM" all steam sterilization processes
  • Stated values for temperature (three) at
    • 121°C
    • 135°C
    • one temperature in between – that mimic the death curve, or biological response, of the microorganisms inside a BI (biological indicator) when exposed to ideal, saturated steam conditions.
  • Stated values for time (ensures that Type 5 CI is labelled for use in 132°C/270°F do not change too quickly or inappropriately at lower temperatures)
    • at 121°C: >16.5 min
    • at 135 °C: > 1.2 min
  • After exposure of the indicator the end point shall be clearly observable.
  • In use, the indicator agent shall not offset or bleed, penetrate the substrate to which it is applied, or materials with which it is in contact.

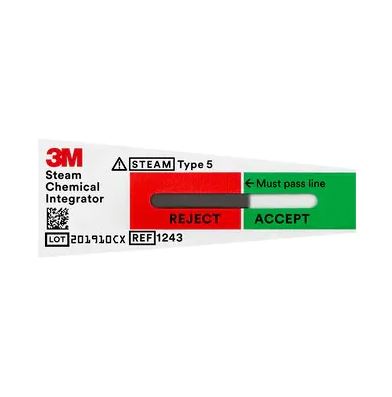

Presentation of the indicator strip:

  • Reinforced white paper strip
  • +/- 5 x 2cm containing a paper wick and a chemical pellet which melts and migrates as a dark colour along the paper wick
  • This migration is visible through a window market ACCEPT or REJECT.

Packaging & Labelling

Pack of 100 or 500

Instructions for use

  • Place 2 TST strips, wrapped in 2 layers of sterilization paper in the middle of each load (or 1 strip in each basket) to be sterilized in order to validate the sterilization cycle. Stick the strip in the sterilization register after completion of the cycle.
  • Place 1 TST strip inside the box or the wired basket containing each surgical set, for the OT staff to check upon opening the set.

The TST indicator is not sensible to its position in the space.

  • If the color bar reaches or crosses into the ACCEPT window, it is a pass and the necessary conditions of time, temperature and steam have been met for sterilization
  • If the color bar is in the REJECT region or on the line, it is considered a fail. The pack should be reprocessed and the cause of sterilization failure should be investigated.

(Cf Introduction: Disinfection and sterilization in the field)

Some restricted information has been hidden. Sign in to see this information


  • Store unopened and resealed packages at 40 – 60% relative humidity conditions
  • Room temperature: 15-30°C, Protect from sunlight
  • Do not store near strong alkaline or acidic products such as cleaning / disinfecting agents.
  • After use, the indicator will not change visually within 6 months when stored in the above conditions.

MSF requirements

This type of TST strip was selected:

  • Better performance compared to the type 6 chemical indicator
  • Result is clear: pass or fail‌
