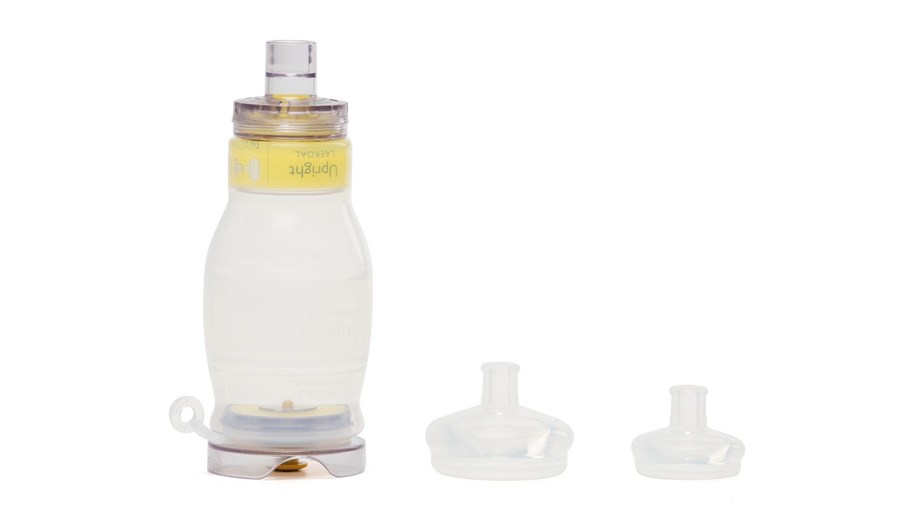

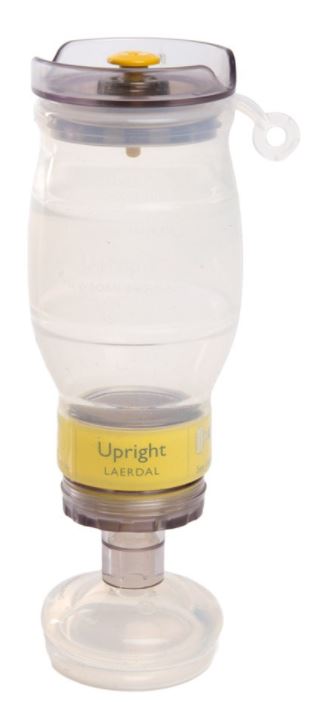

RESUSCITATOR (Laerdal Upright), neonate + MASK n°0 and n°1

https://medicalguidelines.msf.org/en/node/1905
https://unicat.msf.org/cat/product/70136
STD EANERESU1NU

Valid Article

Article is intended to be used with children (<12 years) ONLY.
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
R03020201 - Manually operated pulmonary resuscitators
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

RESUSCITATOR, neonate, upright (Laerdal)

Definition

A hand-operated device designed to provide or assist ventilation in newborns who are apnoeic or exhibit inadequate respiration. It employs ambient air and includes a large flexible chamber that is hand-ventilated, a gas reservoir (oxygen reservoir), tubing, and a connector for attachment to a mask or endotracheal tube; oxygen from an O2 source may also be connected when necessary.

Specifications

Two different models:

  • Basic upright resuscitator model
  • Model with the positive end expiratory pressure (PEEP) to the upright resuscitator prevents repeated alveolar collapse during ventilation, helps to recruit lung volume more efficiently, improves the clearance of lung fluid at birth and reduces damage to lung tissue.
Some restricted information has been hidden. Sign in to see this information

Quality standards

ISO 10651-4, 2023, edition 2, Lung ventilators - Part 4: Particular requirements for user-powered resuscitators

Technical specifications

Resuscitator EANERESU1NU‌ and EANERESU1NUP

  • SELF-INFLATING BALLOON
    • made of transparent silicone
    • maximum tidal volume: 320 ml
    • maximum stroke volume: 150 ml
    • patient valve connection
  • INLET VALVE FOR AMBIENT AIR
  • PATIENT VALVE
    • non rebreathing device, one-way, neonate model
    • with pressure relieve valve
    • translucent polysulphone
    • female respiratory connector ISO 24 mm
  • MASK nº S1 and S0
    • transparent silicone
    • adjustable on 22/15 mm connections
  • PEEP valve for EANERESU1NUP
    • principle : silicone membrane valve
    • reusable
    • is screwed on the distal end
    • pressure range : 6 ± 2 cm H2O
  • Easy to disassemble for cleaning
  • All components are autoclavable up to 134ºC
  • Non sterile

To be Ordered Separately

  • Oxygen kit complete: EANERESU1NU1: reservoir made of transparent plastic, with silicone tubing, with valve connection (which is different compared to the previous/old horizontal (elbow) resuscitator)
  • Additional silicone masks size 0 and 1: minimum quantity in stock = 10 pieces of each size!

Instructions for use

Forms part of the emergency resuscitation equipment. Should always be kept ready for use: visible, clean, complete and in good working order.

Some restricted information has been hidden. Sign in to see this information
Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Filters for breathing circuit to be used between the mask and the balloon to minimize the risk of cross contamination. The filter must be changed between each patient

Maintenance

Before use

  • Check that the valve outlet operates correctly (it should not stick), by gently breathing through the valve whilst watching the flap move.
  • Check the elasticity of the bag by manual pressure.

After each use

  • The patient valve and the masks must be pre-disinfected, cleaned and sterilized by steam autoclave

(Cf Introduction: Disinfection and sterilization in the field)

MSF requirements

Device used for manual ventilation assistance in neonates and babies with weight is <10 kg in case of respiratory distress or failure. Oxygen Reservoir Bag with included valve and tubing allows to administer 100% oxygen to the new-born.

The upright bag and mask has been designed to improve the efficacy of ventilation in newborns.

Some restricted information has been hidden. Sign in to see this information
Some restricted information has been hidden. Sign in to see this information
