MID-UPPER ARM CIRCUMFERENCE TAPE (MUAC) paediatric PP, 115mm

STD EANTBRAB115B

Valid Article

Article is intended to be used with children (<12 years) ONLY.
V0302 - Clinical dimensional parameters measuring devices
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist



MID-UPPER ARM CIRCUMFERENCE TAPE (MUAC) paediatric

Definition

Device for measuring the middle-upper arm circumference in children aged 6-59 months (or according to pre-determined length/height limits when age determination is difficult), enabling rapid diagnosis of acute malnutrition, and therefore detection of children with a high risk of mortality.

Used for initial assessments, nutritional surveys and screening for malnutrition in a community.

Specifications

Technical specifications

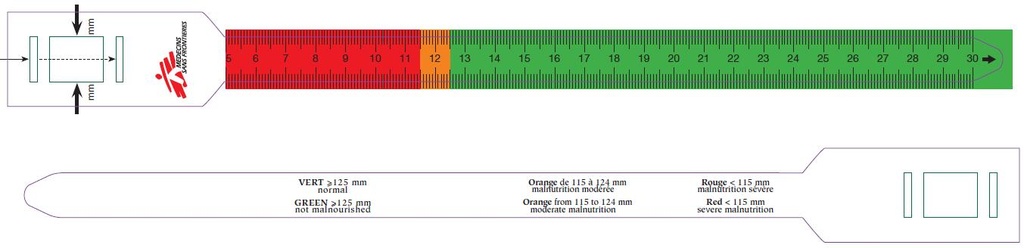

  • Flexible but not extensible polypropylene, washable
  • Multicolour tape with a reading window
  • Dimensions: ± 25 mm x 290 mm
  • Graduations every 1 mm
  • Cut-off point for severe acute malnutrition: 115 mm
  • 3 coloured sections (red, orange and green) allowing illiterate people to assess the nutritional status of children and refer them accordingly
  • The colour classification is useful for mass screening (children in the green zone are not referred for weight/height check)
  • The meaning of the colours is explained in the inner side of the bracelet

Instructions for use

The brachial circumference is always measured on the left arm, at the midpoint between the shoulder and the elbow. The arm should be in a relaxed position alongside the body.

  • Place the strip in position following the arrows to create a bracelet.
  • Slide the tape over the child's wrist and move it halfway up the arm.
  • Adjust the tape to fit snugly in the middle of the arm, ensuring it is neither too tight nor too loose.
  • Read the number indicated at the arrow.
Cut of pointColour Classification
< 115 mmRedSevere Acute Malnutrition (SAM)
≥115 mm and < 125 mmOrangeModerate Acute Malnutrition (MAM)
≥ 125 mmGreenNo acute malnutrition

MSF requirements

Model developed by MSF nutritionists in 2017.

  • the threshold for severe acute malnutrition remains at 115 mm.
  • the graduation is accurate to 1 mm instead of 2 mm.
  • the reading is done with a ruler instead of a window.
  • there are 3 colours instead of 4, according to UNICEF standards.
