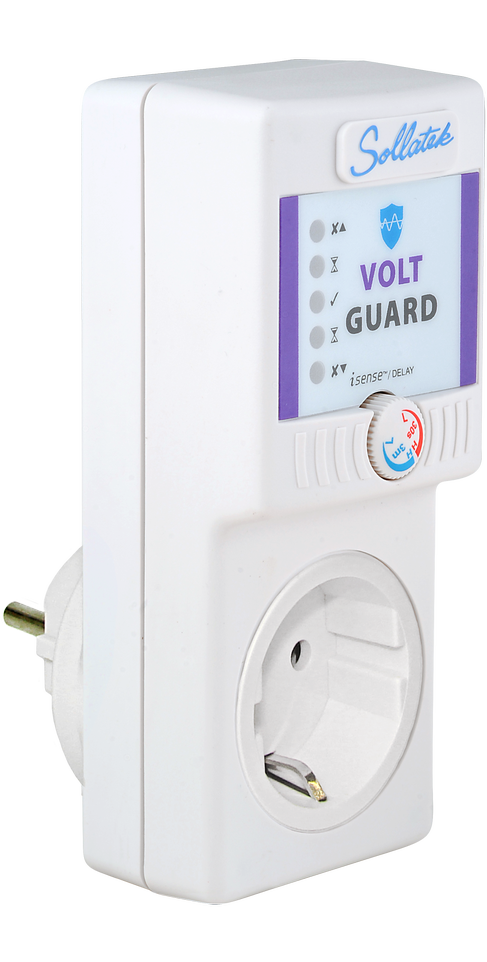

VOLTAGE LIMITER with timer (Voltguard) 180-265V, 7A, EUR

Form

An automatic voltage limiter with a timer, single phase up to max current of 7 amps.

  • Wait time: User adjustable 3 minutes or 30 seconds
  • Low voltage cut-off adjustable between 180 and 190 V AC
  • High voltage cut-off adjustable between 255 and 265 V AC
  • Weight 190g
  • Dimensions: 140x60x90mm
  • Rotary knob which allows to control the reaction sensitivity to voltages

Closed article: Sollatek, Voltguard 92625100. Per piece.

Fit

Type E+F/EUR plug for input and output.

Ideal for TV, Video, Hi-fi, PABX, fax machines, fridges and domestic freezers and all electronic equipment up to 7 amps.

Function

The voltage limiter protects electronical equipment against over and under voltage. The voltage limiter disconnects the power when it goes below or above unacceptable level. Additionally, there is a delay when power returns to normal. This will ensure that the appliance is not switched on-off repeatedly during fluctuations nor it is subjected to a massive surge normally experienced when power returns after powercuts.

It cuts the supply of electricity whenever the voltage goes beyond the threshold of 180 - 265V. Maximum current of 7A.
