GENERATOR (FG Wilson P88) 80kVA 400V 50Hz 3ph, diesel

Definition

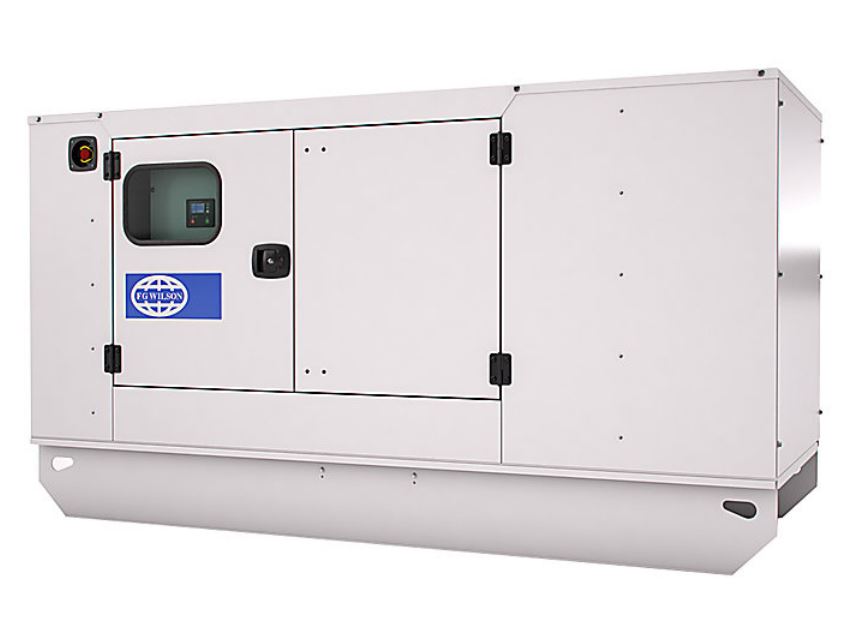

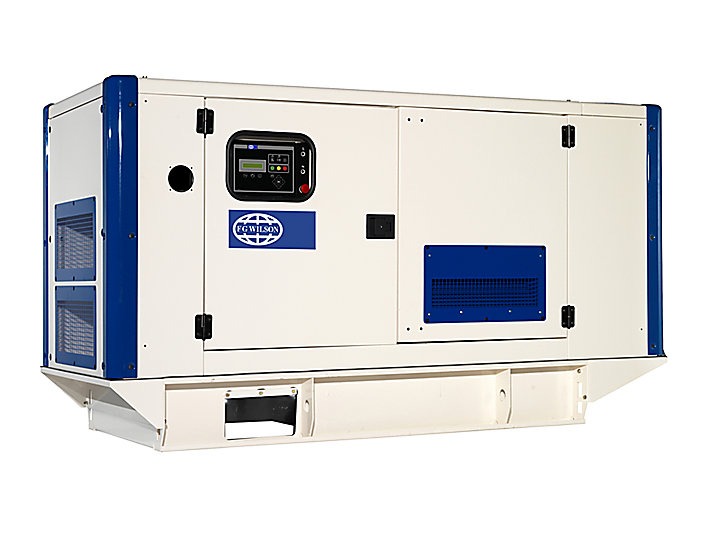

The FG Wilson P88 is powered by the Perkins 1104C-44TG2 4 cylinder turbo charged, water cooled 1500rpm diesel engine, 50 Hz, alternator FGL30100, AVR, all housed in a quiet, durable and weather resistant acoustic enclosure.

Controlled by a control panel FG100 with a start/stop button and a single menu layout for ease of navigation, but can also come with an alternative control panel type like for example DeapSea.

A standard version comes with a bunded long range fuel tank, a water heater, a battery charger and 2 wire auto start/stop.


Specifications

  • output ratings: prime/standby: 80/88 kVA at 400/230 V, 50 Hz
  • engine: Perkins 1104A-44TG2
  • alternator: FG Wilson FGL30020 or equivalent
  • control panel: FG100 or alternative
  • fuel tank capacity: 180 litres
  • fuel consumption at 100% load: prime/standby: 18.2/20.1 litres
  • noise level: 66dB(A) at 7 m
  • running time: 13.8 hours at 75% load
  • hard wired output only, no socket
Some restricted information has been hidden. Sign in to see this information

Technical specifications

Engine:

  • 4 cylinder, 4 stroke, in line diesel engine
  • speed: 1500 rpm (for 50 Hz)
  • gross engine power: prime/standby: 73.4/80.7 kW
  • turbocharged, water cooled with mechanical regulator
  • lubrication: engine oil, 8 liters, 15W-40

Alternator:

  • output: 400/230 V, 50 Hz, 3-phase
  • power rating: prime/standby: 80/88 kVA, 64/70.4 kW
  • excitation system: SHUNT
  • AVR model: R120

Dimensions

LxWxH: 1870 mm x 840 mm x 1333 mm

Weight: 939 kg

Transport Dangerous Goods

Generators might be considered as dangerous goods for transport:

  • If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
  • If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations

Instructions for use

For power calculations refer to your technical department .

Do not fill the fuel tank while the engine is running.

For maximum safety and earthing, refer to the MSF guidelines on energy.

See: Remarks on generators

Maintenance

The usual maintenance interval is every 250 hours for this type of generator. For certain countries/locations a different maintenance interval might be applicable, check this with‌ your technical department.

Use the logbook generator 1500 rpm , article code: L041MECM19E-P.
