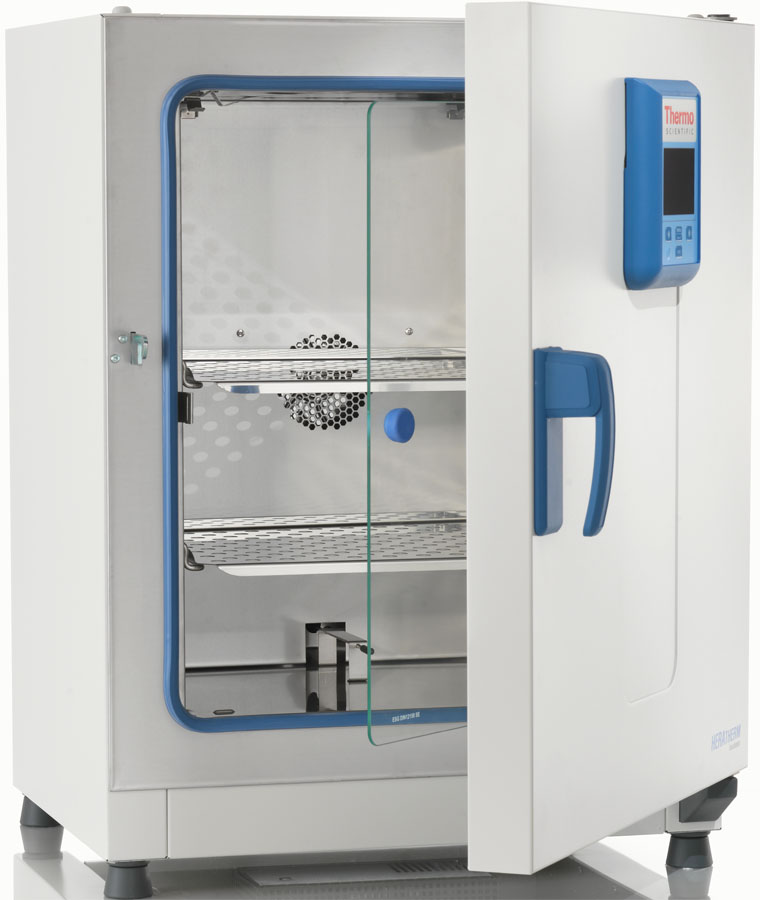

INCUBATOR 117l (HeraTherm IGS100), 230V 50-60Hz
STD
ELAEINCE7--
Valid Article
Account code:
60110
HS Code:
901890
Last Updated on:
07/11/2024, 17:55:43
Former
Code(s):
-
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
INCUBATOR, for cultures (HeraTherm IGS60/IGS100)
Definition
An incubator is a device intended to provide ideal conditions for the growth of microorganisms in culture by automatically monitoring temperature, humidity and other conditions.
Specifications
Some restricted information has been hidden. Sign in
to see this information
Technical specifications
- Regulation range: +5°C to 75°C
- Spatial temperature range at 37°C: ±0.6°C
- Temperature deviation over time at 37°C: ±0.2°C
- Net weight IGS60/100: 40/51 Kg
- Volume chambre IGS60/100: 75/117 liters
- Power supply: 120V
- Number of shelves standard/max: IGS60: 2/13 IGS100: 2/16
- Supplied with 2 shelves
Dimensions
IGS 60
- Internal dimensions: 354x508x414 mm
- External dimensions:530x720x565 mm
IGS 100
- Internal dimensions: 464x608x414 mm
- External dimensions:640x820x565 mm
Instructions for use
Some restricted information has been hidden. Sign in
to see this information
Precautions for Use
Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.
Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).
MSF requirements
To incubate at 37°C inoculated Lowenstein-Jensen media tubes and MGIT tubes (with MGIT manual system), to allow mycobacterial growth.
It is also used for bacterial growth, on agar plates or tubes, at 35°C.
Reserved for TB culture and bacteriology programmes.
Some restricted information has been hidden. Sign in
to see this information
