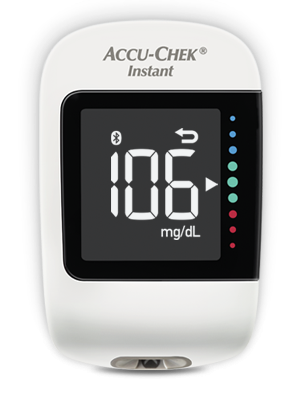

GLUCOMETER (Accu-Chek Instant)
CAUTION: The strips and control solutions, to be ordered separately, are specific to the glucometer type and brand.
Definition
A battery powered handheld device intended for the quantitative measurement of glucose levels in whole blood.
Specifications
Blood glucose in whole blood from capillary blood
Quality standards
Technical specifications
- Measuring range: 10-600 mg/dl or 0.6-33.3 mmol/l
- Color code bue, green, red: target range set by default at 70-160 mg/dl (3.9 - 8.9 mmol/l)
- Unit of measure: mg/dl or mmol/l
- Sample volume: 0.6 µl
- Possible hematocrit range: 10 - 65 %
- Operating temperature: 4-45°C
- Operating relative humidity: 10-90 %
- Result display: <4 seconds
- Data storage: 720 results
- Interfaces: USB: micro-B connector; Bluetooth
- Battery-operated: coin cell battery 3V CR2032
Dimensions
- Size: 77.1 x 48.6 x 15.3 mm
- Weight: approx. 40 g
Supplied with the Article
Protection pouch
To be Ordered Separately
- Test strips (ref. 7819382171)
- Control solutions (ref. 07869525171)
- Safety lancets
Instructions for use
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
Maintenance
Never repair. Replace with new one if broken.
MSF requirements
Handheld automatic analyzer allowing direct and quantitative determination of glycaemia.
Analyzer authorized for a shared use.
Accurate and reliable results also for paediatric and neonate use.
Use for self-testing requires Medical Director validation, please contact your laboratory advisor.
