(solar airco) PANELS AND PROTECTION SET
NST
PELESOLAPPS
Valid Article
Account code:
61120
HS Code:
{}
Last Updated on:
12/04/2024, 15:22:07
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(solar airco) PANELS AND PROTECTION SET
Form

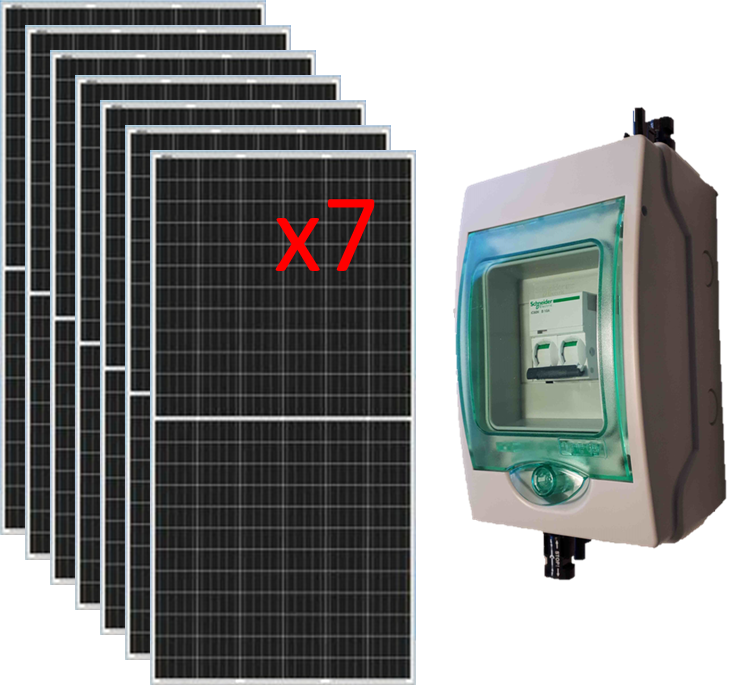

Content:
- 7 solar panels (265W, 30.8V)
- Distribution box with DC circuit breakers and pre-wired cables
- Extra MC4 connectors
Fit
To be used to install the solar AC.
CCLIAIRCS1H - AIR CONDITIONER solar hybrid, 12000BTU, w/o solar equipment
This kit is sized to maximize performance in a off-grid situation. When using as hybrid it is advised to reduce panels.
Function
Cables from solar panels to distribution box to be ordered separately. (PELECABL2X6PM - CABLE flexible, 2x6mm², for solar panel, per metre)
All 7 solar panels are connected in series. Cables from solar panels are wired into provided DC circuit breakers. Wires from DC circuit breakers are connected to outdoor unit of AC. INSURE CORRECT POLARITY!
Consult the FSU for further installation information.
