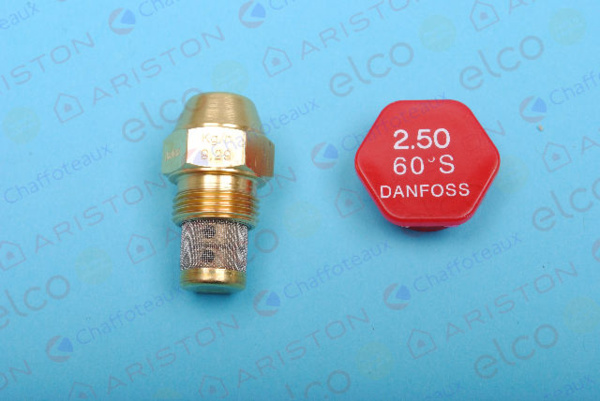

(Ecoflam MAX25) NOZZLE (65323399) 2.50x60°, S

NST YECO65323399

Valid Article

Former Code(s): CWATINCI8N1
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

NOZZLES

Form

LABEL READING:

(Burner model) NOZZLE (reference part) flow x angle, spray pattern

  • The degree refers to the spray angle (as shown in the picture below.)
  • The letters H, S or B refer to the shape of the spray pattern (as shown in the second picture below.)

Example: (Ecoflam MAX25) NOZZLE (65323399) 2.50x60°, S

= Nozzle for the burner Ecoflam MAX25, manufacturer reference 65323399, flow of 2.50 gal/h, spray angle of 60°, spray pattern “solid”.


Fit

Burner mentioned in the label.

Function

The purpose of the nozzles in burners is to atomize the fuel into tiny droplets and allow it to burn.
