  2. (Weishaupt WL30) NOZZLE (612212) 1.50x60°, S
Public Pricelist

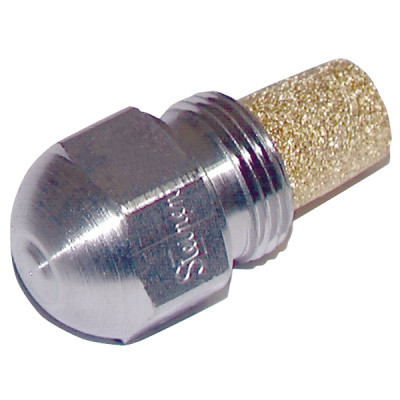

(Weishaupt WL30) NOZZLE (612212) 1.50x60°, S

https://unicat.msf.org/cat/product/95824
NST YSTE612212

Valid Article

A
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

NOZZLES

Form

LABEL READING:

(Burner model) NOZZLE (reference part) flow x angle, spray pattern

  • The degree refers to the spray angle (as shown in the picture below.)
  • The letters H, S, B or SS refer to the shape of the spray pattern (as shown in the second picture below.)

Example: (Ecoflam MAX25) NOZZLE (65323399) 2.50x60°, S

= Nozzle for the burner Ecoflam MAX25, manufacturer reference 65323399, flow of 2.50 gal/h, spray angle of 60°, spray pattern “solid”.


Fit

Burner mentioned in the label.

Function

The purpose of the nozzles in burners is to atomize the fuel into tiny droplets and allow it to burn.
