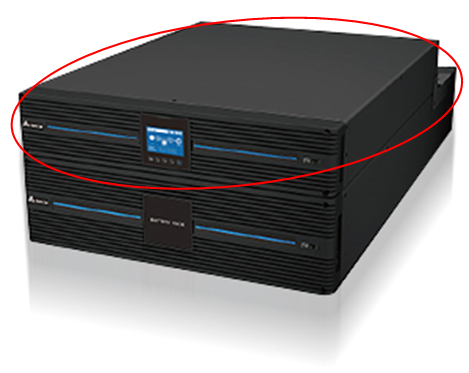

(Delta Amplon RT-6K-EXTEND) ELECTRONIC UNIT

Form

  • Input voltage range 100 - 300 V (note that between 100 V and 180 V input voltage, the output power is reduced by 50 - 100%; full power is available only at 180V AC and above). At higher (>300 V) or lower (<100 V) voltages the UPS switches to battery power
  • Nominal power 6 kVA
  • Input and output frequency 50 or 60 Hz
  • Power factor >0.99
  • Efficiency (full load) >92%
  • Without battery
  • 1 phase output
  • With a LCD-display
  • Dimensions WxDxH: 430 x 440 x 88.2 mm
  • Weight: 10.9kg

This item is the power supply ONLY.

There is no connection between the incoming power and the outgoing power. All possible electrical problems such as voltage spikes are eliminated.

To function in the case of a power-cut it needs a battery pack, which has to be ordered separately.


Closed article: DELTA ENERGY, UPS602R2RT2N035.

Fit

To be used in any electrical installation always with a Delta RT battery cabinet.

Function

A double conversion uninterruptible power supply (UPS) guarantees a perfect AC supply and is especially suitable for vulnerable and/or expensive equipment such as medical and laboratory equipment.
