(ultrasound Edge 2) MINI DOCK L15078

https://unicat.msf.org/cat/product/87538
STD EDIMULSA801

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z11049080 - Various ultrasound instruments - hardware accessories
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
I
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

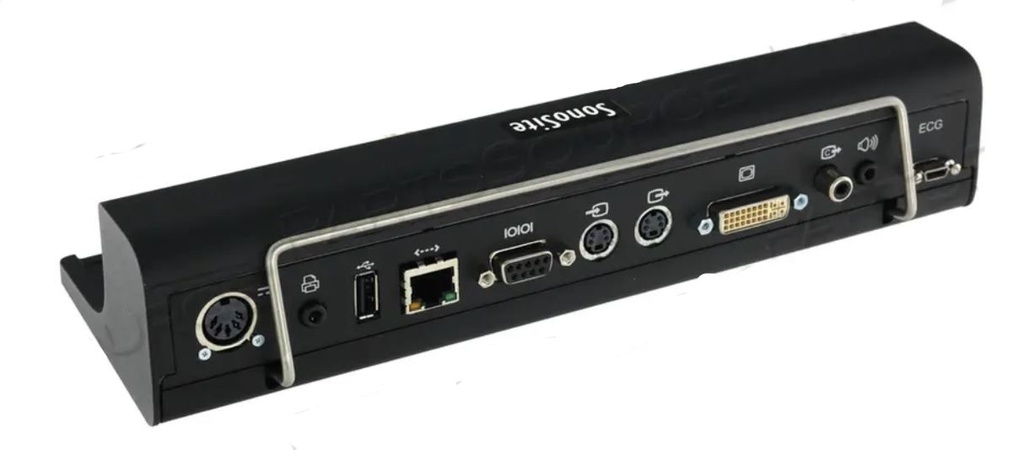

SonoSite Mini-Dock

Definition

An electrically-powered device designed to supply an electrical charge, via a direct/wired or wireless connection, to the battery of a noninvasive device to recharge it for operation; it is not intended to receive data from and transmit data to other devices (i.e., not a transceiver). It is typically in the form of an electronic circuitry housing with a cable.

Specifications

The SonoSite mini-dock provides connections for accessories and peripherals on any of the following ultrasound systems:

  • SonoSite Edge II ultrasound system
  • Edge ultrasound system
  • M-Turbo ultrasound system
  • MicroMaxx ultrasound system
  • TITAN ultrasound system

Each ultrasound system uses a different model mini-dock

Some restricted information has been hidden. Sign in to see this information

Instructions for use

To attach mini-dock

  • Ensure that the ultrasound system is turned off. Connecting the system and mini-dock while the power is on may cause the mini-dock to function improperly.
  • Slide the mini-dock feet under the ultrasound system, and firmly press the mini-dock into the system connector.
  • The mini-dock is correctly attached when no gap is between the system and mini-dock.

To remove mini-dock

  • Grasp the handle on the ultrasound system and push back on the release lever.
  • Pull the ultrasound system forward.

Precautions for Use

If at any time the ultrasound system loses connectivity, turn off the system and reattach the mini-dock and system. Always verify that the mini-dock and system are correctly attached after changing a transducer. When you change a transducer, the mini-dock may loosen.

Maintenance

Clean and disinfect The exterior surface of the mini-dock can be cleaned and disinfected with a recommended cleaner or disinfectant.

  • Remove the system, unplug the power supply, and detach any cables.
  • Clean the surfaces using a soft cloth lightly dampened in a mild soap or detergent cleaning solution. Apply the solution to the cloth rather than the surface.
  • Wipe the surfaces with the disinfecting solution.
  • Air dry or towel dry with a clean cloth.
