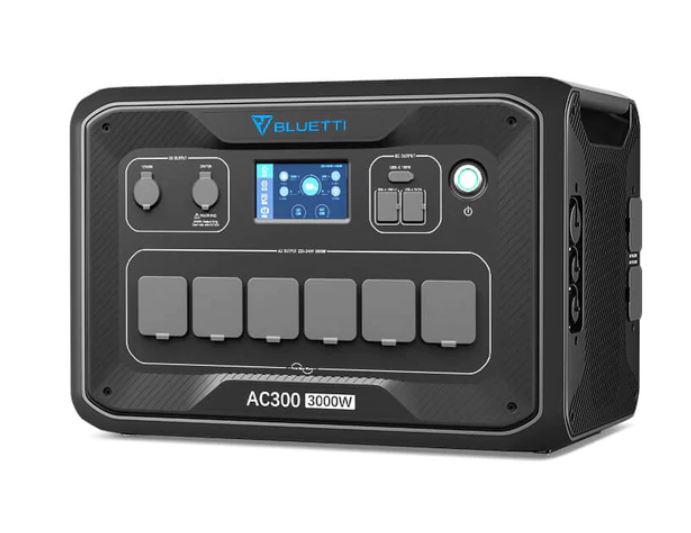

POWER STATION power unit (Bluetti AC300) EU version

Form

The power unit AC300 contains a battery charger and an inverter of 230 V/50 Hz AC.

The charger can use different power inputs for charging the battery. The power source can be the grid, DC-power from solar panels or from 12 V car battery. The maximum power for charging is 3000 W.

The inverter provides an AC output voltage of 230 V/50Hz with a maximum output power of 3000 W.

It comes with:

  • AC charging cable to connect the AC300 to a EURO type F+G socket
  • solar charging cable. Adapter to connect the MC4 connector of 2 solar panels or arrays to the AC300
  • car charging cable

Dimensions: 520 x 320 x 358 mm

Weight: 21.6 kg

Per piece.

Fit

The Bluetti AC300 is intended to be used togheter with the Bluetti B300 battery module, PELECHARPSBB3. Together, these devices form an autonomous power station that provides 230V AC power for mobile application or a backup system. In the European version there are 6 sockets with the type E as an AC output.

Additionally the AC300 provides multiple low voltage, DC Outputs:

  • USB-A, USB-C
  • cigarette lighter port (car)
  • Wireless charging pad

The battery module can be charged via AC-input, PV-panel or connection to a car battery. Each of these inputs require a cable with special connectors from Bluetti.

Function

The Bluetti AC300 power station is an off-grid charger/inverter capable of providing backup power of 230V/50Hz AC. For operation it needs to be connected with one or multiple battery units of type Bluetti B300.
The power station will be configured and monitored by an App from a Smartphone. For this purpose it has Wifi and Bluetooth communication interfaces.

Battery module specification B300:

  • battery type: LiFePO4
  • standard battery voltage> 51.2 VDC
  • battery voltage ange: 44.8-57.6 VDC
  • short-circuit and over-temperature protection included
  • AC output (inverter)
    • rated output voltage: 220-240 VAC, 50 Hz
    • rated continuous power: 3000 W
    • rated output current: 13 A
    • efficiency: > 88%
  • AC input (battery charging)
    • input voltage: 207-253 VAC, 47-63 Hz
    • max. input current: 30 A (default configurable)
    • max. power of charging: 3000 W
  • PV input (battery charging)
    • max. Input Voltage: 150V DC
    • max. power of input: 2400 W (1200 W per input)
    • rated input current: 24 A (12 A per input)
