POWER STATION combo (Bluetti AC300+B300K) EU version

Form

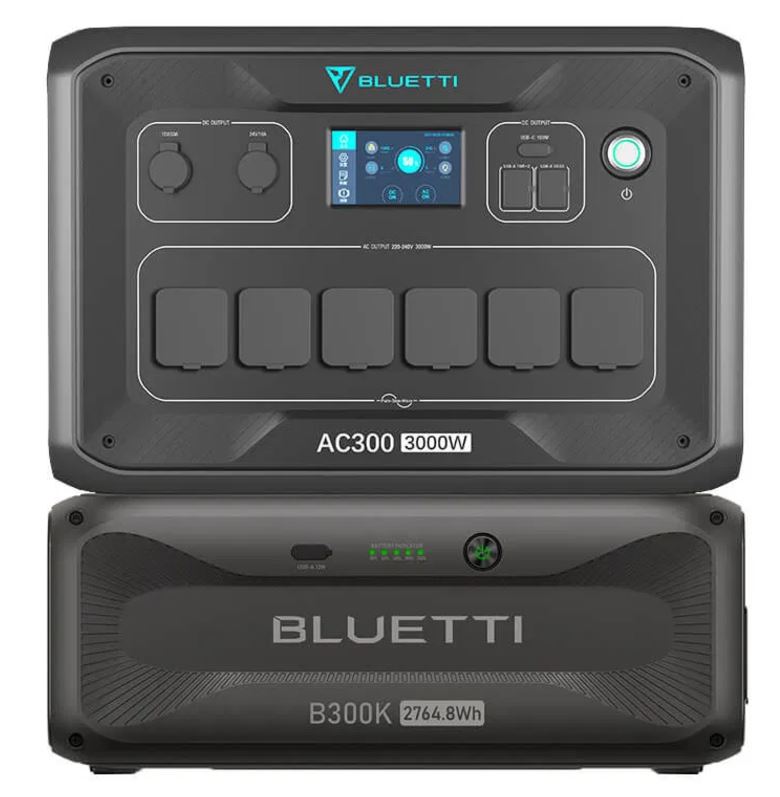

The power station Bluetti combo AC300 and B300K. is a combination of the charger/inverter module AC300 and the battery pack B300K.
The maximum power of the power station is 2700 W. Energy storage capacity can be increased by connecting multiple battery packs (max 4 batteries B300K) to an AC300 charger/inverter.

Power station consists of 2 pieces: AC300 and B300K:

  • Dimensions:
    • AC300: 520 x 320 x 358 mm
    • B300K: 527 x 327 x 209 mm
  • Weight:
    • AC300: 21.6 kg
    • B300K: 29.5 kg
    • total: 51.1 kg
  • It comes with:
    • AC charging cable to connect the AC300 to a EURO type F+G socket
    • solar charging cable: adapter to connect the MC4 connector of 2 solar panels or arrays to the AC300
    • car charging cable

Fit

The power station combo Bluetti AC300 and B300K is a complete and independent power supply unit.

Battery charging can be done from different sources AC power from the grid or a generator, solar power and/or 12 V DC from a car.

Solar charging with the AC300: 2 inputs of 150V / 12A, totaling 2400 Wp.

The generated output power has the same characteristics as that from a grid or a generator, 230 VAC, 50 Hz.

Function

The power station is a combination of two base modules:

  • POWER STATION power unit (Bluetti AC300) EU version, PELECHARPSBP3
  • POWER STATION battery unit (Bluetti B300K) 2764 Wh PELECHARPSBB2

Together they form a complete and independent power supply unit which can be used for mobile applications or as a backup system.

Transport Dangerous Goods

For air transportation this item is regulated, as it is classified as hazardous good by IATA:

  • UN3481 Lithium ion batteries contained in equipment
  • Class: 9 Packing Instructions: 967 Section II
  • The label must include the UN code of the battery + an emergency number to contact in case of an incident
  • Limit per package:
  1. Pax A/C (Passengers & Cargo Aircraft) = 5 kg
  2. CAO (Cargo Aircraft Only) = 5 kg

For maritime transport: not restricted as per special provision IMDG 188.
