POWER STATION battery unit (Bluetti B300) 3072Wh

Form

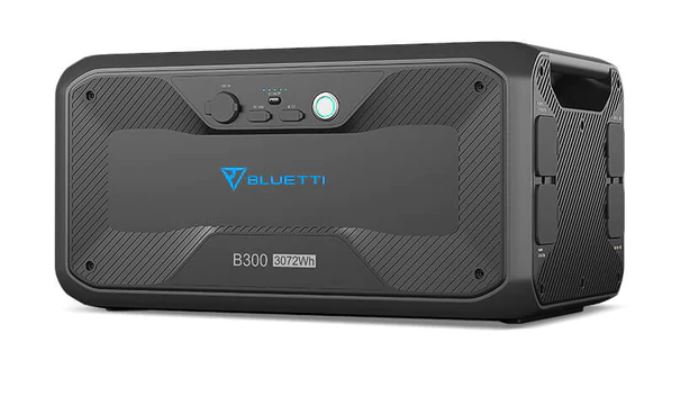

The power station battery unit B300 is a battery pack designed to support a Bluetti power station

Specifications:

  • nominal battery voltage: 51.2V
  • capacity: 3072 Wh
  • power of charging: 3000 W Max
  • max. input voltage: 150 VDC
  • MPPT voltage range: 12 - 150 VDC
  • max. power of input: 12000 W x 2
  • rated input current: 12 A x 2
  • battery:
    • battery type: LiFePO4
    • max. voltage: 58.8V DC
    • max. current: 80 A
  • dimensions: 520 x 320 x 266 mm
  • weight: 36.1kg
  • It comes with:
    • ​P090D cable to connect to the AC300 charger/inverter or to another B300 battery
    • solar charging cable: adapter to connect the MC4 connector of a solar panel or string of panels t the XT90 port of the B300 battery

Per piece.

Fit

Fits to Bluetti AC300 (PELECHARPSBP3) and AC200 power station. Multiple battery units, up to 4, can be connected to an AC300 and AC200 power station in order to increase the storage capacity.

Inputs: AC input, PV input and car charging

DC outputs: USB-A, USB-C and cigarette lighter port

Function

The power station battery unit B300 serves as an energy storage for the Bluetti AC300 power station. It will be connected to the charger/inverter module with a DC cable. The power station battery unit is controlled by the AC300 module.

Transport Dangerous Goods

For air transportation this item is regulated, as it is classified as hazardous good by IATA:

  • UN3481 Lithium ion batteries contained in equipment
  • Class: 9 Packing Instructions: 967 Section II
  • The label must include the UN code of the battery + an emergency number to contact in case of an incident
  • Limit per package:
  1. Pax A/C (Passengers & Cargo Aircraft) = 5 kg
  2. CAO (Cargo Aircraft Only) = 5 kg

For maritime transport: not restricted as per special provision IMDG 188.
