POWER STATION battery unit (Bluetti B300K) 2764Wh

https://unicat.msf.org/cat/product/95896
NST PELECHARPSBB2

Valid Article

UN3480
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://www.unicat.msf.org/web/image/product.template/587200/image_1920?unique=d6a3664

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

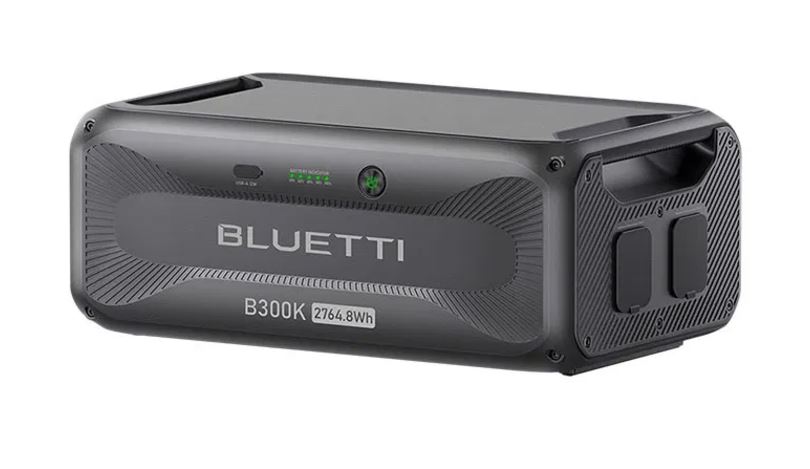

POWER STATION battery unit (Bluetti B300K) 2764Wh

Form

The battery unit for power station, B300K, is a battery pack designed to support a Bluetti power station

Specifications:

  • nominal battery voltage: 51.2V
  • capacity: 2764 Wh
  • Charging current: 60 A max
  • Discharging Current: 70A max
  • Battery type: LiFePO4 (Lithium Iron Phosphate)
  • dimensions: 525 x 327 x 209 mm
  • weight: 29.5kg
  • It comes with:
    • ​P090A expansion cable to connect the B300K to AC300, AC200MAX, AC200L, or other B300K units
    • warranty
    • documentation

Per piece.


Fit

The B300K can be used with AC300, AC500, AC200MAX, and AC200L as a 2764.8Wh expansion pack in order to increase the storage capacity.

Connecting to B300K Battery: use the P090A battery expansion cable to interconnect the B300K units.

Connecting to AC300 with the P090D cable that comes with the B300K: connect up to 4 B300K units for a maximum capacity of 11,059.2Wh

Connecting to AC200MAX and to AC200L withthe P090D cablethatcomeswiththeB300K: connect up to 2 B300K units for a maximum capacity of 5,529.6Wh.

Connecting to AC500 with the P090D to P150D cable (not included with the B300K battery) : connect up to 6 B300K units for a maximum capacity of 16,588.8Wh.

DC outputs: USB-A, 12W - 5V/2,4A

Function

The power station battery unit B300K serves as an energy storage for the Bluetti AC300, AC500, AC200MAX, and AC200L power station. It will be connected to the charger/inverter module with a DC cable. The power station battery unit is controlled by the AC300, AC500, AC200MAX, and AC200L.
