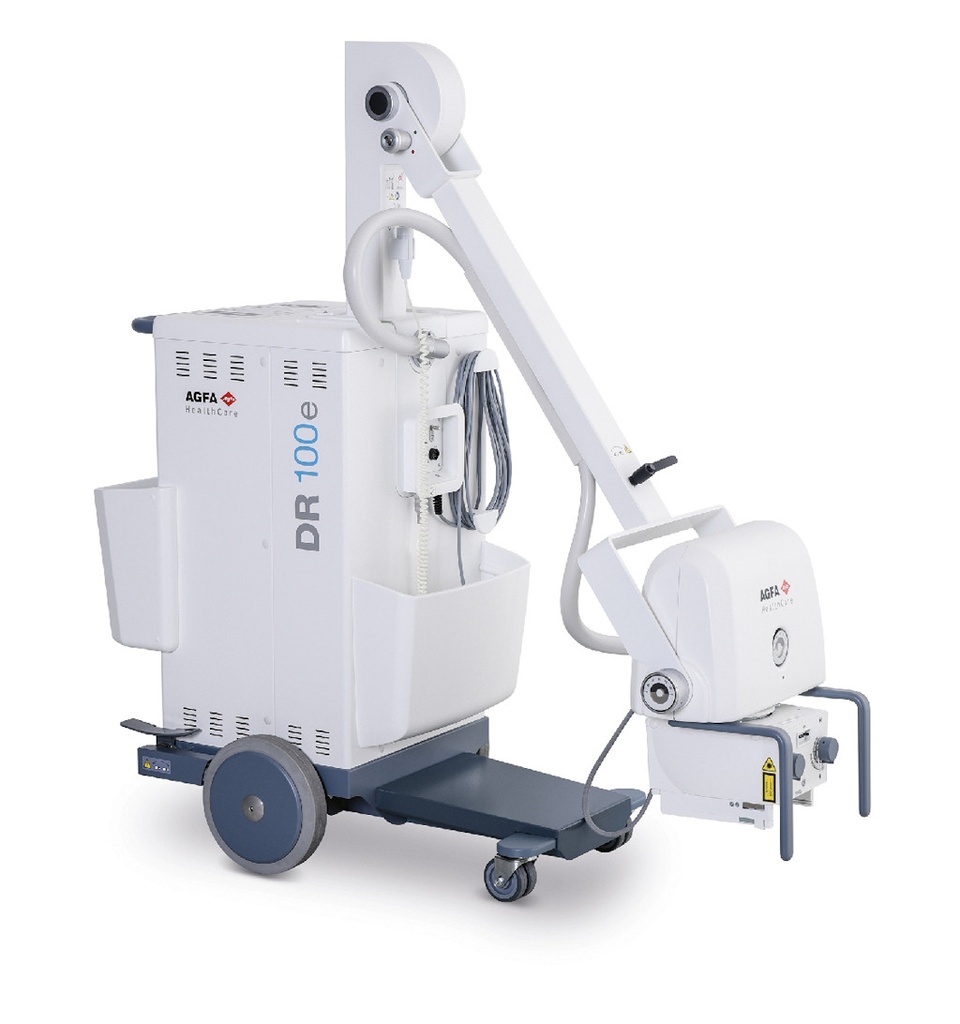

X-RAY UNIT, MOBILE, ANALOGUE, Agfa DR100e

This machine is replacing the Polymobil Plus and the Mobiliett XP of Siemens which is no longer produced.

The most appropriate X-ray equipment will depend on the specific project requirements.

Before ordering an x-ray unit, please contact the Diagnostic Imaging Working Group (diagnostic-network@msf.org) for advice, and to discuss radiation safety requirements, human resources requirements, servicing and necessary accessory equipment.

Definition

The Agfa DR100e is a mobile x-ray unit suitable for general hospital based x-ray applications and is used in combination with the AgfaCR10X.

It is usually not reccommended as the primary choice in a hospital based setting (see fixed options WHISRAD and MULTIRAD) unless engineer installation is not possible. It is also not the preferred model to be moved around a hospital as it requires constant line power to operate. To discuss the most appropriate X-ray machine selection for the project requirements please contact the DIWG: diagnostic-network@msf.org

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

  • IEC 60601-1-3, 2008, edition 2.2, +A1 2013, A2 2021 Medical electrical equipment - Part 1-3: General requirements for basic safety and essential performance - Collateral Standard: Radiation protection in diagnostic X-ray equipment
  • EN 60601-2-54, 2009, +A2 2019 Medical electrical equipment - Part 2-54: Particular requirements for the basic safety and essential performance of X-ray equipment for radiography and radioscopy

Components

  • 32KW ANALOGUE NON ROTATING COLUMN XBU9H
  • X-RAY TUBE 0.6 mm/1.33 mm 11/32KW XJV64
  • COLLIMATOR WITH DOUBLE LASER SID XBVDS
  • VACUUM SEALED TRANSPORT BAG XBVGY
  • POWER PLUG EUROPE XB9UC_ DR 100e
  • CERAMIC RAPID FUSE 100A 660V FEE (x2 pieces) TN+12050
  • SMALL PARTS KIT x1 TN+63679/1
  • X-RAY HANDSWITCH (additional one) TN+213988/A
  • INVERTER ASSEMBLY RF+63737
  • CAPACITORS BOARD TN+01650

Technical specifications

X-ray generator

  • Output 32 kW max
  • High frequency generator : 40 kHz
  • Monobloc thermal capacity: 600 kJ (800 kHU)
  • kV range: 40 to 125 kV (1 kV steps)
  • mA range: 50 - 400 according to kV selection
  • mAs range: 0.1 - 110 (12.5% steps)
  • Time range (according to mAs selection): 0.001 - 2.2 s

Exposure controls

  • Double switch X-ray hand-switch with extensible cable
  • Remote control (optional)

X-ray tube

  • Rotating anode: 3000 rpm
  • Double focal spot: 0.8 and 1.3 mm (Optional 0.6 mm and 1.3 mm)
  • Nominal focus power:
    • 16 kW small focus
    • 32 kW large focus
    • (Optional 11 kW and 32 kW)
  • Anodic diameter: 64 mm
  • Anodic angle: 15°Max. continuous anode dissipation: 300 W
  • Anode thermal capacity: 80 kJ (107 kHU)

Collimator

  • High brightness power LED
  • 30 s light timer
  • Extractable meter for SID measure
  • Collimator rotation: ± 120°
  • Additional filtration by manual selection (1 mm Al + 0.1 mm Cu; 1 mm Al + 0.2 mm Cu; 2 mm Al)

Mains voltage

  • 115/230 Vac ± 10%, 50/60 Hz Auto selection
  • Max. line resistance: < 1 Ω
  • Connection to standard mains outlet: 16 A
  • Length power cable: 8 meter

Dimensions

  • 1366 (L) x 618 (W) x 1444 (H) mm
  • Weight: Approx.170 kg

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Must be used in a dust free environment.

Operational environment:

  • Permissible ambient temperature +10°C to + 40°C
  • Permissible relative humidity 10 % to 100 %

It is mandatory to protect the device with a double conversion UPS (see related articles below).

Maintenance

There are specific manufacturer and MSF maintenance tasks that MUST be followed. Manuals, schedules and MSF SOP documents are available on the MSF X-ray SharePoint page.

Any questions regarding purchase or maintenance may be sent to the Diagnostic Imaging Working Group (diagnostic-network@msf.org).

Storage

For transport/storage:

  • Permissible ambient temperature -20°C to + 55°C
  • Permissible relative humidity 10 % to 100 %
