POWER QUALITY ANALYZER three-phase (Fluke 1770 Series)
Form
Three-phase power quality analyzer for logging, real-time monitoring, transient capture and standards-grade power quality studies across industrial and utility systems.

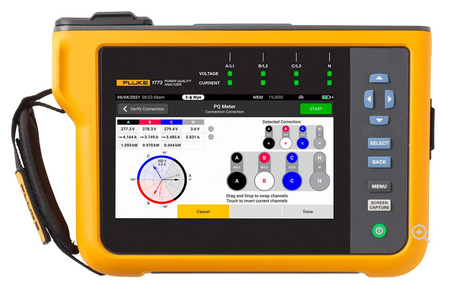

- shape: handheld and portable instrument with large colour touchscreen and multi-terminal voltage and current inputs
- material: rugged insulated enclosure designed for field use with hanging kit and hand strap
- Standards: compliant with IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEC 61000-4-15, IEEE 519 and related power quality standards
Electrical characteristics:
Voltage inputs: 4 inputs for three phases and neutral with wide measurement range up to 1000 V
Current inputs: 4 auto-ranging inputs compatible with Rogowski coils and current clamps, supporting very wide current ranges
sampling: high-speed synchronous sampling for PQ measurements, with enhanced transient capture capability up to 8 kV
Harmonics: measurement of harmonics to 50th order, interharmonics and supraharmonics (2 to 9 kHz) with bandwidth up to 30 kHz
- power / battery: automatic power supply via the measurement circuit with internal Li-Ion battery backup for ride-through
- dimensions: 280 x 190 x 62 mm
- weight: 2.1 kg
Includes: voltage flat cable, voltage test leads, flexible current sensors depending on model, USB-C cable, mains cord, carrying case, quick start documentation and fluke energy analyze plus software
Per piece.
Fit
installation method: connection via flat voltage cable and compatible current sensors with guided setup and automatic connection verification
electrical compatibility: supports single-phase, split-phase, three-phase wye, three-phase delta, high-leg and open-delta systems up to 1000 V depending on probe configuration
environmental compatibility: operating temperature from −10 °C to 50 °C and storage from −20 °C to 60 °C with IP50 protection rating
communication compatibility: Ethernet, USB-C, USB-A, optional Wi-Fi or Bluetooth, optional LTE module and GPS input for time synchronisation
memory compatibility: internal storage of 8 GB or 32 GB depending on model, with microSD expansion for long-duration logging
Function
measure and log RMS voltage, current, power, energy, frequency, power factor, harmonics, interharmonics and supraharmonics for power quality studies
capture events including dips, swells, interruptions, rapid voltage changes, mains signalling and transients with waveform and high-resolution RMS recording
automatic power quality capture with extensive parameter sets and guided configuration
trend and analysis tools with configurable intervals and comprehensive reporting to major power quality standards
auxiliary inputs for external sensors with user-defined scaling
utilities include automatic wiring check, multi-device synchronisation, real-time PQ metering functions and flexible data export options
Transport Dangerous Goods
For air transportation this item is regulated, as it is classified as hazardous good by IATA:
- UN3481 Lithium ion batteries contained in equipment
- Class: 9 Packing Instructions: 967 Section II
- The label must include the UN code of the battery + an emergency number to contact in case of an incident
- Limit per package:
- Pax A/C (Passengers & Cargo Aircraft) = 5 kg
- CAO (Cargo Aircraft Only) = 5 kg
For maritime transport: not restricted as per special provision IMDG 188.
