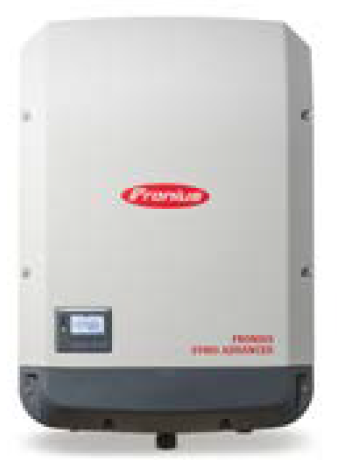

INVERTER PV (Fronius Symo 20.0-3-M-FULL-AFCI) 20kVA 380/230V

Form

The inverter transforms the direct current generated by the solar modules into alternating current.
This alternating current is fed into the electric grid synchronously with the grid voltage.

  • inverter type: 3-phase transformerless
  • number of MPP trackers: 2
  • usable MPP voltage range: 200 – 800 V
  • DC voltage range: 200 – 1000 V
  • number of DC connections: 3 + 3
  • maximum PV generator output: 30.0 kWp
  • AC nominal output: 20 KW
  • maximum output power: 20 kVA
  • AC output current: 28.9 A
  • dimensions (H × W × D): 725 × 510 × 225 mm
  • weight: 39.8 kg
  • water and dust protection: IP 66

Per piece.

Fit

  • The maximum input current per MPP tracker is 33 A / 27 A.
  • Solar panel strings can be connected with 2.5 – 16 mm² DC cables.
  • AC output can be connected with 5-pole screw terminals (2.5 – 16 mm² cables).
  • Includes integrated AFCI (Arc Fault Circuit Interrupter) and rapid shutdown function.
  • Integrated data communication via Ethernet, Modbus RTU/TCP and RS-485 (WLAN optional).
  • Compatible with Fronius Solar.web, Solar.start and Solar.creator monitoring tools.

Function

A solar inverter converts the direct current (DC) produced by photovoltaic modules into alternating current (AC) synchronized with the grid.
Designed for grid-connected systems, it continuously monitors voltage, frequency and grid stability to ensure safe operation.

The inverter optimizes energy yield through dual MPP tracking, dynamic feed-in management and active cooling, ensuring maximum efficiency and reliable performance.
Integrated AFCI protection and communication interfaces enhance safety and facilitate remote monitoring.

The Fronius Symo Advanced 20.0-3-M has been developed exclusively for use in grid-connected photovoltaic systems.
