(Dantherm AC) AIR DUCT insulated, Ø400mmx3m, flexible + bag
NST
CCLIAIRCAVD4
Valid Article
HS Code:
841590
Last Updated on:
11/12/2024, 19:40:58
Former
Code(s):
CCLIAIRCA8DI CCLIAIRCCA8DI
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

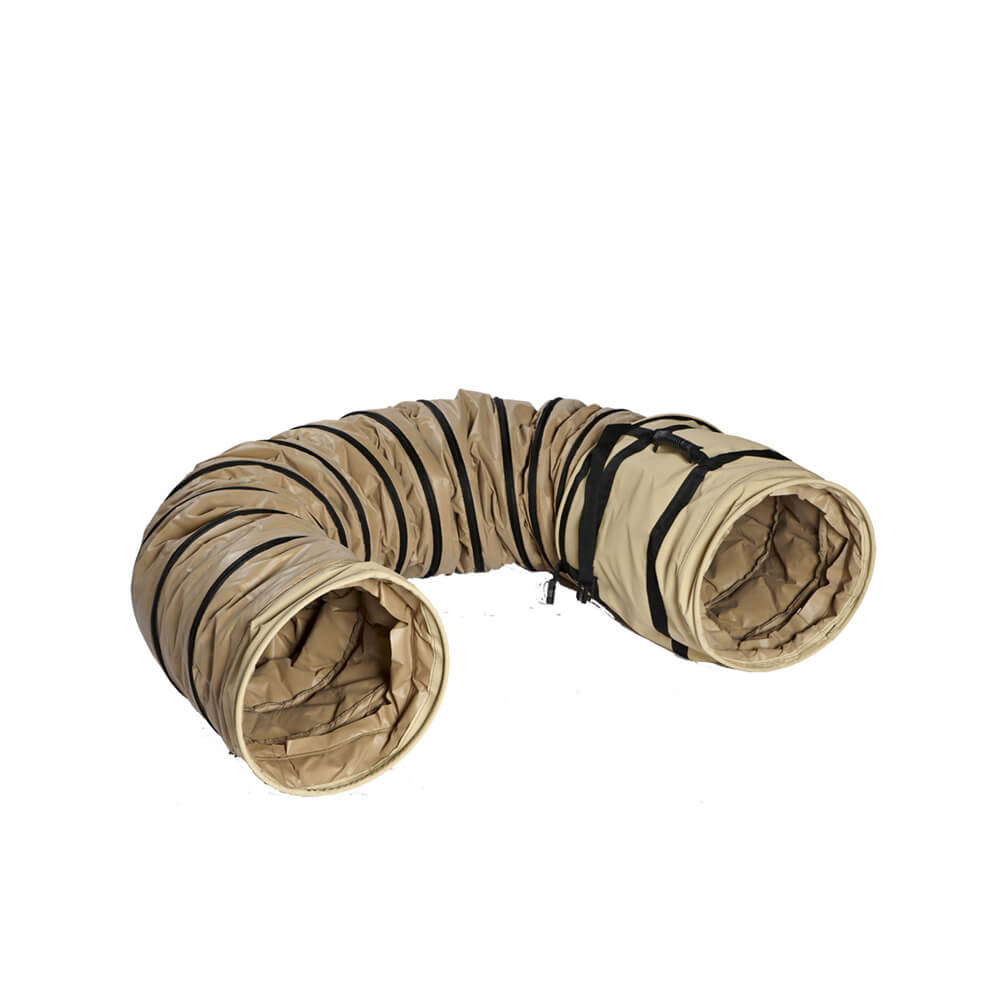

(Dantherm AC) AIR DUCT insulated, Ø400mmx3m, flexible + bag
Form
A flexible air duct:
- insulated: 25 mm
- fire retardant (DIN 4102 B1)
- diameter: 400 mm
- length: 3 m
- color: sand
- packing bag included
- packed dimensions with bag: 630 x Ø 450 mm
Per piece.
Fit
Compatible with the Dantherm AC-M18.
This duct is connected to the air conditioner unit on one end and to the tent opening on the other. It can be used for either the air supply of the air exhaust.
For the air supply, it should be connected to a non-insulated flexible air distribution duct at the air supply opening of the tent.
Function
Used to connect the air conditioning unit, placed outside the tent, to the flexible air distribution duct inside the tent, or to connect the air return opening in the tent to the AC unit.
