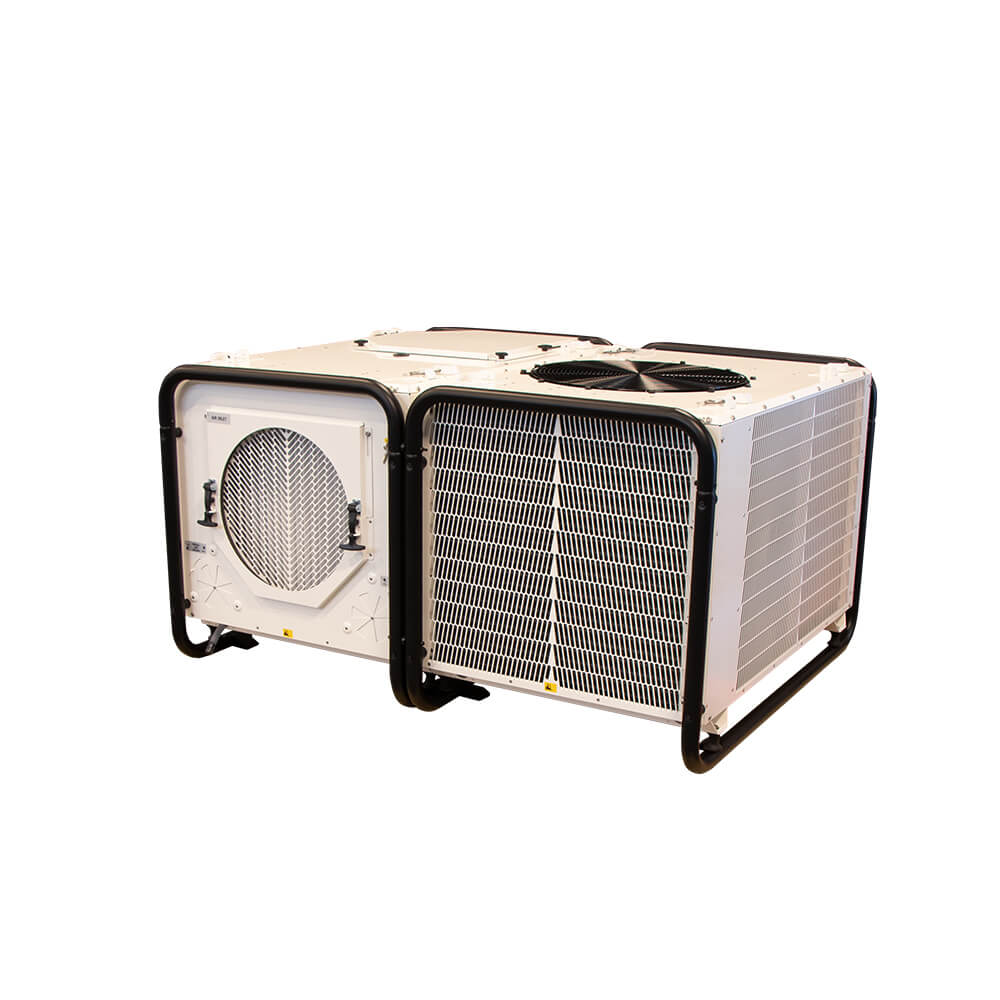

AIR CONDITIONER (Dantherm AC-M18) 3x208V 60Hz, 17.5kW, white

Form

Transportable and movable air conditioner.

Technical specifications:

  • airflow, internal, with ducts: 2500 m³/h
  • cooling capacity: 17.5 kW
  • heating capacity: 6000 kW
  • power supply: 3 x 208 V 60 Hz
  • power supply plug: 63A CEE, 5P 230V, IP44
  • power consumption cooling: 8.3 kW
  • max running current cooling: 33A
  • max running current heating: 52A
  • air duct connection: 400 mm diameter
  • one G3 filter is included with the unit. A second filter (F7) can be added for additional air filtering
  • fresh air intake: manually adjustable, up to 10%
  • operating range, cooling: 20 to 60°C
  • operating range, heating: -32 to 20°
  • color: white or sand
  • optional SOFT START included
  • weight (without accessories): 243 kg​

Per piece.


Fit

This specific model works 60 Hz frequency.

Standard setup includes:

  • 2 x insulated Ø 400 mm x 3 m flexible air ducts
  • 1 x non-insulated Ø 400 mm x 5 m flexible air duct
  • 1 x non-insulated perforated diffuser duct Ø 400 x 6000 mm
  • 1 x thermostat

Consummables include:

  • G3 filter
  • F7 filter (optional)
  • HEPA filter (possible addition between the air outlet of the unit and the supply duct)

A insulated Y-connection can be used when 2 x Ø 315 mm supply ducts are needed instead of 1 x Ø 400mm.

For tents with HVAC sleeves smaller than Ø 400 mm, an insulated air duct adaptor is available.


Function

Cooling and/or heating of tents or permanent structures while ensuring filtered air supply as well as air renewal.
