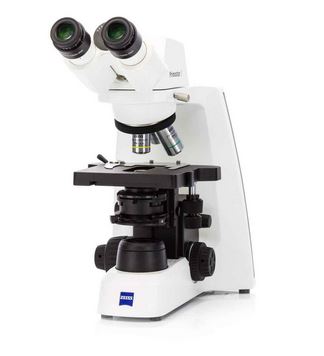

MICROSCOPE (ZEISS PrimoStar 3 iLED)

This microscope replaces the previous model [ELAEMICE6--].

Definition

Binocular microscope with incorporated normal light and LED light source. For use in light and fluorescence microscopy.

Specifications

Some restricted information has been hidden. Sign in to see this information

Components

  • 1x MICROSCOPE only (415501-0051-000)
  • 1x PHOTOTUBE BINO. (415500-1401-000)
  • 1x POWER BANK, Li-ion (000000-0677-975)
  • 1x CABLES ADAPTER (415500-1828-000)

Technical specifications

Fixed-Köhler microscope including:

  • Eyecups with light protection
  • 4-position nosepiece
  • Mechanical stage 75x40, drive right
  • Specimen holder, with spring clip left
  • reflected-light fluorescence illuminoator iLED
  • Eyepiece WF 10x/20 Br. Foc.
  • 4 objectives iPlan: 10x, 20x, 40x and 100x (oil)
  • Condensor 0.9/1.25 field 20, Fixed-Köhler
  • yellow filter
  • FL reflector module with filter set 67
  • Led illumination, module 455nm
  • Binocular tube 25°/20
  • 5V USB port
  • Power unit 100-240V with country specific adapter
  • Dust cover

Dimensions

140 mm × 135 mm

Instructions for use

Protect from dust, shocks and humidity.

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Maintenance

Recommendations lens cleaning:

  • Blow all dust particles away
  • Remove all water-soluble dirt with distilled water. If this is not successful, repeat using diluted dishwashing liquid.
  • Remove oily dirt, first using diluted dishwashing liquid.

MSF requirements

Rapid switching from fluorescence to light microscopy and vice-versa.
