MICROSCOPE (PrimoStar iLED), light and fluorescence 100-240V

NST ELAEMICE6--

Outdated Article

Former Code(s): -X ELAEMICR6--
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
W0202050303 - Optical laboratory microscopes
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Documents See Related

Add article to list



Add Kit To Wishlist

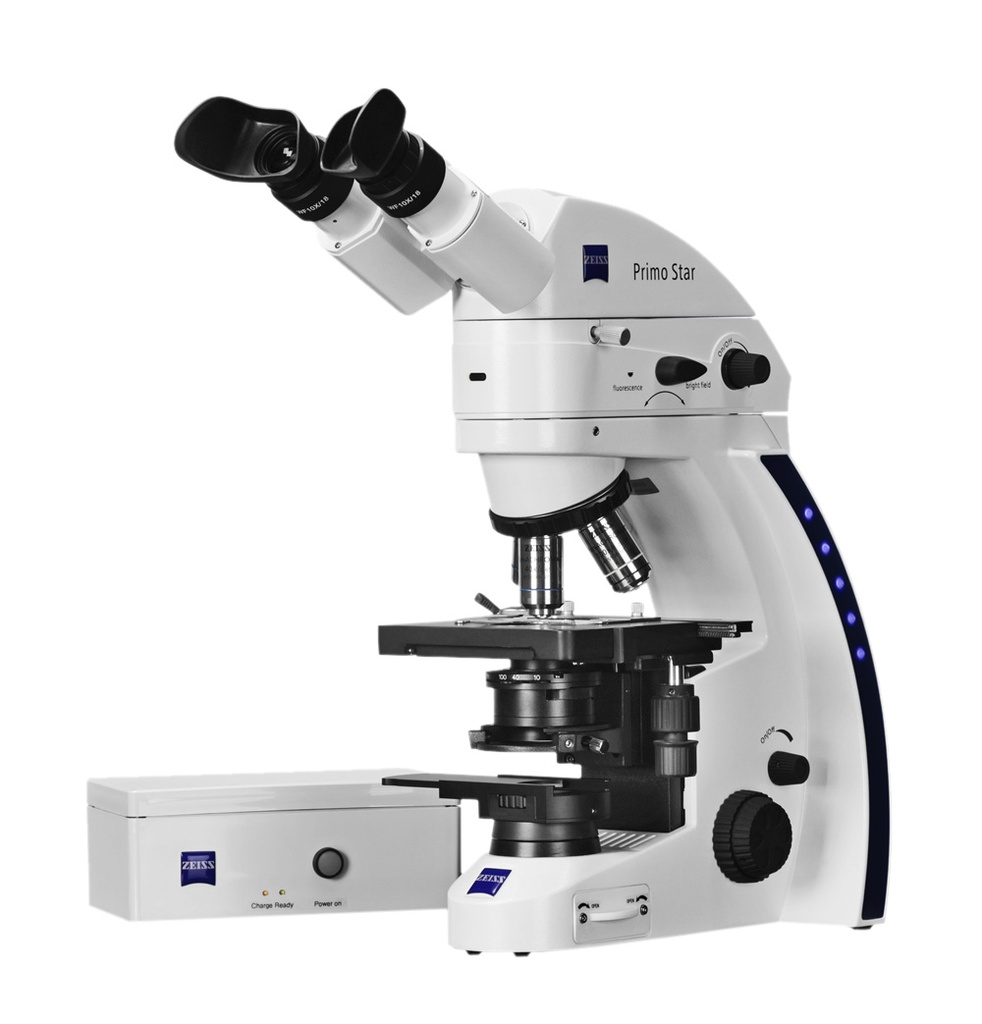

MICROSCOPE (ZEISS PrimoStar iLED)

This article has been discontinued by the manufacturer and is replaced by ELAEMICE6B-. The microscopes that are in stock in the ESCs can still be sent to the field.

Definition

Binocular microscope with incorporated normal light and LED light source. For use in light and fluorescence microscopy.

Specifications

Some restricted information has been hidden. Sign in to see this information

Components

  • Fixed-Koehler microscope
  • Reflected-light fluorescence illuminator iLED IDC

Technical specifications

Fixed-Koehler microscope, including:

  • 4-position nosepiece, tilted backwards
  • Mechanical stage 75x30 mm, drive right and specimen holder with spring cleft
  • Binocular tube 30°
  • Eyepieces 10x/18 Br. foc.
  • 4 lenses: 10x, 20x, 40x, 100x (oil)
  • Condenser 0.9/1.25
  • External power unit 100-240VAC/50-60Hz/30V with country specific adapters
  • Dust cover
  • Dropper bottle with 5 ml immersion oil
  • Colour filter set: Blue, green, yellow

Reflected-light fluorescence illuminator iLED IDC for Primo Star, including:

  • LED module 455 nm (ref. 000000 1520 246)
  • FL reflector module with filter set 67 optimized for Auramine or Acridine orange
  • Yellow filter
  • Special eyecup with light protection
  • LED illumination

Dimensions

Volume: 18.7 x 47.0 x 28.8 cm

Weight: 9.6 kg

Packaging & Labelling

Wooden transport box

  • Volume/unit: 79 x 60 x 61 cm
  • Gross weight/unit: 25 kg

Supplied with the Article

See related articles below

  • Power bank (ref. 000000-0677-975)
  • Mirror (ref. 415500-1202)

To be Ordered Separately

For the mobile teams, it is advisable to order a separate transport case to protect the microscope during transport (+/- 250 €, see accesories). The box is only indicated for mobile teams using the microscope without the fluorescence system.

Instructions for use

Protect from dust, shocks and humidity.

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Maintenance

Recommendations lens cleaning:

  • Blow all dust particles away
  • Remove all water-soluble dirt with distilled water. If this is not successful, repeat using diluted dishwashing liquid.
  • Remove oily dirt, first using diluted dishwashing liquid.

MSF requirements

Less expensive than other fluorescence microscopes.

Rapid switching from fluorescence to light microscopy and vice-versa.

Some restricted information has been hidden. Sign in to see this information
