(Dantherm AC-M18) AIR DUCT ADAPTOR insul., Ø400mm-Ø315mmx3m
NST
CCLIAIRCA8D3
Valid Article
HS Code:
841590
Last Updated on:
22/10/2024, 15:23:04
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

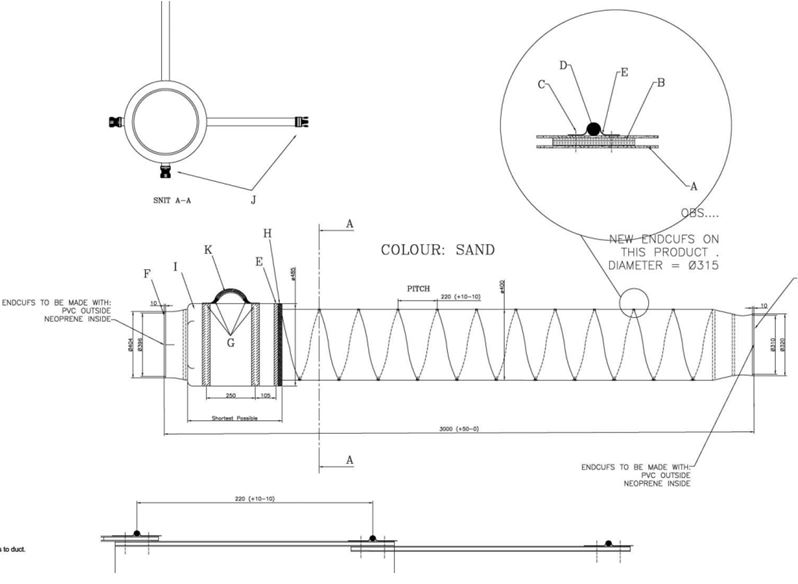

(Dantherm AC-M18) AIR DUCT ADAPTOR insul., Ø400mm-Ø315mmx3m
Form
A flexible air duct, which can be used as an adaptor:
- insulated: 25 mm
- fire retardant (DIN 4102 B1)
- diameter different at each end of the duct
- end 1: Ø 400 mm
- end 2: Ø 315 mm
- length: 3 m
- packing bag included
Per piece.
Fit
This duct must be used with an AC M-18 and combined with Ø 315 mm non-insulated duct + Ø 315 mm diffusing duct for the air supply, and can be used alone for the return air.
Function
This duct is meant to be used with the AC M-18 for tents where the HVAC sleeve is too small to fit a Ø 400mm duct.
It acts as an adaptor from Ø 400 mm to Ø 315 mm, as well as a 3 m insulated duct.
It can be used for the air supply, as well as the return.
