KIT VHF DIGITAL (Icom IP2AIR) + remote control +base gateway
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
KIT VHF DIGITAL (Icom IP2AIR) + remote control +base gateway
Definition
Complete digital radio base kit, with VHF mobile radio, interface/remote control and accessories.
Compatible with existing digital Phase II networks, used for upgrading a Phase I to Phase II network.
More info about the Phase I and II networks and digital radio's can be found on the article 'Digital Radio Transition: what's it all about?' on Sherlog: https://sherlog.msf.org/articles/13822/digital-radio-transition-whats-it-all-about.html.
Specifications

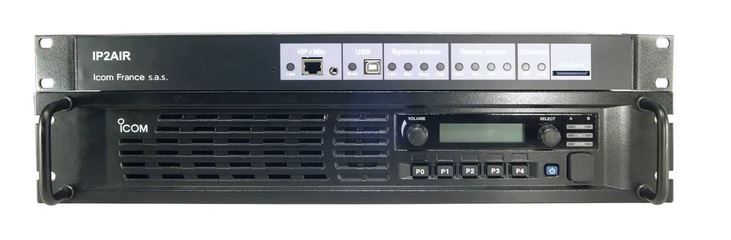

Supplied with VHF base Icom IC-F5062DP, HM-152 microphone, OPC-IP2AIR5062 linking cable, IP2AIR remote control unit, power supply cables.
Functions:
- Digital voice
- GPS Tracking
- Text Messaging
- Caller identification
- Stun/Kill/Revive
- Remote interfacing
Instructions for use
Refer to Phase I and Phase II setup guides for pre-requirements, installation, usage and maintenance. Please refer to Telecom Referent for more information.
