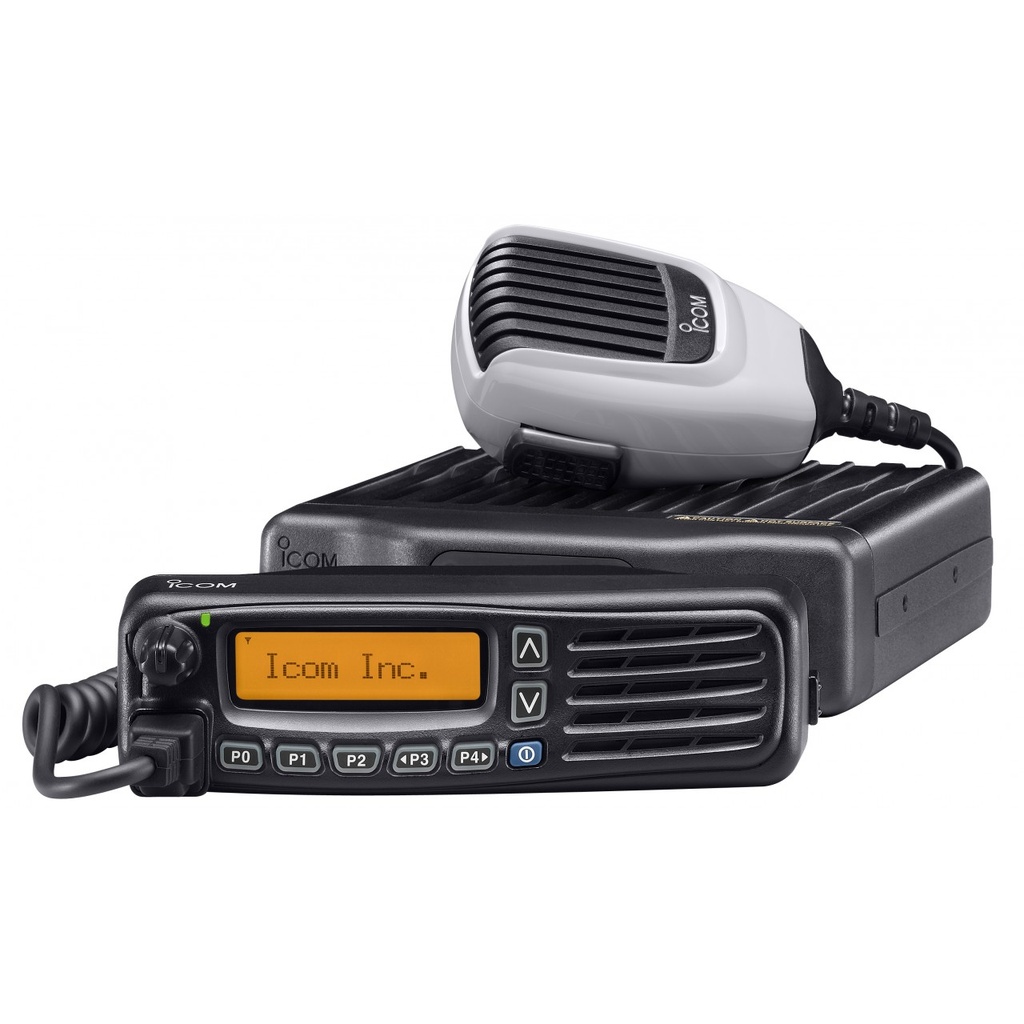

VHF TRANSCEIVER (Icom IC-F5062DP) 136-174MHz
NST
PCOMVHFEI56T
Valid Article
HS Code:
852560
Last Updated on:
05/12/2024, 22:01:48
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
VHF TRANSCEIVER (Icom IC-F5062DP) 136-174MHz
Form
Specifications:
- Firmware: DPMR/ICOM France
- Supplied with power cable
- Supplied with Icom HM-152 microphone
- With CTCSS option (audio subtone)
- Frequency range: 136 - 174 MHz
- Programmable channels: 512 channels / 128 zones
- Programmable channel increment: 12.5/15/25/30 kHz
- Duplex mode, programmable frequency interval
- Runs on 12 V DC battery
- Consumption:
- Tx: 14 A
- Rx: 1.2 A
- Standby: 0.3 A
- Power output: 25 W maximum
- Antenna impedance: 50 ohms, unbalanced
Fit
To be used in combination with other base station or with mobile VHF handsets for two way communication.
Function
Wide-band VHF radio, base station and mobile, intended for short-distance voice communications.
Will allow GPS identification of user.
