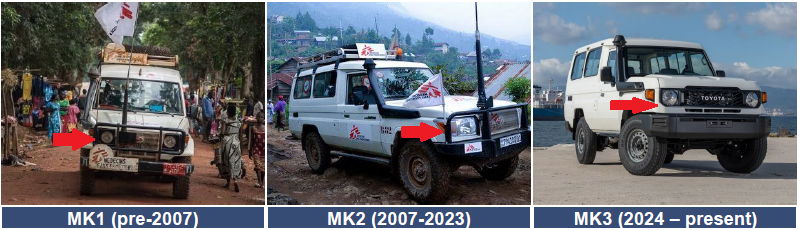

LANDCRUISER 4x4 (HZJ78, MK3) diesel RHD, sanitary transport
Valid Article
SC subscriptions: included in supply or field tools
|
|
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
LANDCRUISER 4x4 (HZJ78/GDJ78) sanitary transportation
Definition
Converted vehicle for the sanitary transport of a person or patient, based on an MSF standard vehicle type HZJ78/GDJ78.
The essential part of the conversion consists of the integration of a cell giving space to a functional arrangement and the separation of the steering cabine. The concept and composition of it all allows for a proper cleaning and desinfection of the cell.
The cell or patient unit is exclusively intended for the transport of people.

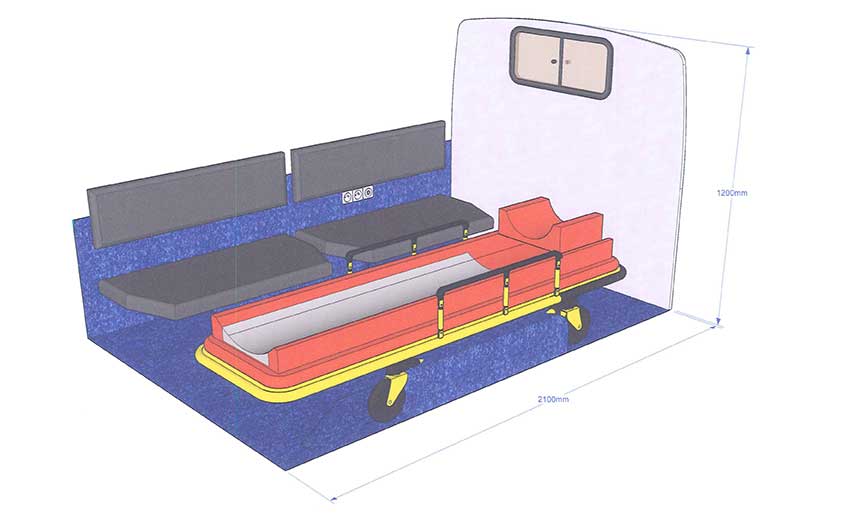

Capacity of the patient cell:
- Transport of 1 patient lying on a stretcher (kit transport patient) + 4 places for seated persons, or
- 8 persons seated (4 double benches)
Capacity in the steering cabin:
- seats for the driver + 2 places
Different levels of medical equipment are defined to allow the stabilisation of the patient, if needed.
Following the example of a standard vehicle, the converted vehicle incorporates the standard preparation of a vehicle by your technical department, such as the roof, spare wheel(s), hi-lift jack, etc.
Description:
The cell or unit in the back is composed of: a floor, lateral panels, a dividing wall with a sliding window separating the cell from the drivers cabin, as well as ceiling coverage made of materials that are cleanable and do not rot.
Technical specifications:
By default the unit is equiped with the following equipment:
- Three perfusion systems on the ceiling with sliding hooks.
- A needle container, a box for gloves and a waste bin of 3 liters.
- A holding net fixed on the ceiling.
- A semi-transparant layer up till 2/3th of the height on the windows.
Materials:
- partitions made of materials that can be cleaned and do not rot.
Accessories and equipment:
- The equipment such as the jack, wheel brace, driver toolkit and the telecommunication equipment are all located in the drivers cabin.
Electricity - equipment and installation:
- Four (4) led lights on the ceiling.
- One (1) ventilation fan with reversible roof operated from the drivers cabin.
- One (1) fixed revolving light operated from the drivers cabin.
- Two (2) 12 volt sockets, sigarette lighter style with standard build-in female sockets.
- Additional battery of 12 volt - 55AH OPTIMA installed parallel for the power supply of the equipment in the medical compartment.
- Starter battery replaced by a 55AH OPTIMA battery.
- Relay with voltage threshold to avoid a complete discharge of the starter battery.
Optional equipment and installations:
- simple electronical siren
- electronical siren for public
- label "Ambulance" (colour to be specified)
- Logo "Ambulance" (type, shape and colour to be specified)
