MODULE UPS double convers. (Delta Amplon RT) 10kVA, 3ph/3ph

https://unicat.msf.org/cat/product/97739
NST KPROMPOSUB10A

Valid Article

UN3171
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://www.unicat.msf.org/web/image/product.template/588549/image_1920?unique=9d080c2

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

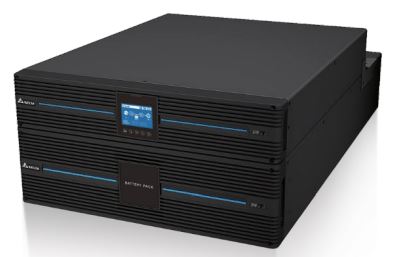

MODULE UPS double convers. (Delta Amplon RT) 10kVA, 3ph/3ph

Form

  • Nominal power‌: 10 kVA/10 kW
  • Nominal input voltage: 400/230 V AC
  • Input voltage range:
    • 305 - 485 V AC 100% load
    • 138 - 305 V AC 40% - 100% load
  • Input and output frequency: 50 or 60 Hz
  • Power factor: >0.99
  • Efficiency (full load): >92%
  • Without battery
  • 3-phase input
  • -phase output
  • With LCD-display
  • Capacity: 10 kVA output
  • Dimensions: WxDxH: 440 x 649 x 88 mm
  • Weight: 16.6kg

There is no connection between the incoming power and the outgoing power. All possible electrical problems such as voltage spikes are eliminated.

Fit

Can be used in any electrical installation. The UPS electronic unit always needs to be connected to at least one battery pack. Several battery packs can be installed in parallel to increase the backup time.

Function

A double conversion uninterruptible power supply (UPS), guarantees a perfect AC supply and is especially suitable for vulnerable and/or expensive equipment such as medical and laboratory equipment.
