GENERATOR (SDMO K30UM) 27kVA 208/120V 60Hz 2ph, diesel
Definition

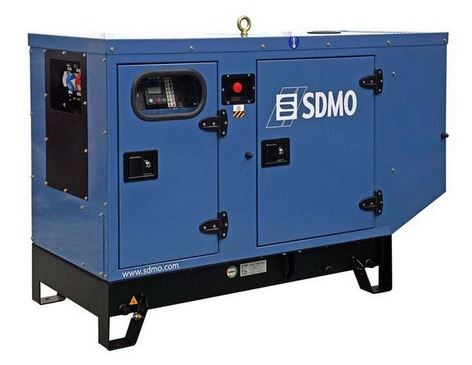

The K30UM is a compact diesel generator set built by Kohler‑SDMO. It uses a turbocharged Kohler KDI2504TM‑30 four‑cylinder engine coupled with a brushless alternator to produce stable 208/120 V at 60 Hz.
The generator is housed in a weather‑resistant M137 sound‑attenuated enclosure with antivibration mounts and an integrated 100 L fuel tank.
A digital APM303 control panel (manual or automatic) monitors voltage, frequency and key engine parameters. It offers reliable standby and prime power for sites requiring low noise, high starting capacity and easy transport.
Specifications
output ratings: prime/standby: 34.90 / 38.38 kVA (27.9 / 30.7 kW) at 208/120 V, 60 Hz, three‑phase.
engine: Kohler KDI2504TM‑30 diesel, 4‑cylinder, turbocharged, 2.48 L displacement, 1800 rpm.
alternator: Kohler KH00630TO4N, brushless, 4‑pole, 12‑wire, IP23 protection, class H insulation with ±1 % AVR regulation.
control panel: APM303 digital controller (standard) with optional APM403.
fuel tank capacity: 100 L (soundproofed version); fuel consumption:
• at 100 % load: 10.10 L/h
• at 75 % load: 7.30 L/h
• at 50 % load: 5.30 L/hnoise level: 79 dB(A) at 1 m and 69 dB(A) at 7 m (soundproofed version).
features: mechanically welded base frame with antivibration suspension; sound‑attenuated steel enclosure with epoxy paint; integrated 12 V battery charger and electric starter; supplied with oil and coolant; designed for easy maintenance and transport.
Engine
brand: Kohler KDI , model: KDI2504TM‑30.
configuration: inline four‑cylinder; displacement 2.48 L; bore × stroke 88 × 102 mm.
compression ratio 18.5 : 1, rated speed 1800 rpm.
aspiration: turbocharged; fuel injection: direct, governor type: mechanical.
maximum standby power at rated speed: 38 kW.
cooling: mechanically driven radiator fan coolant capacity (radiator + engine) 9.10 L.
lubrication: oil system capacity (including filters) 11.50 L, minimum oil pressure 0.70 bar.
Alternator
brand/model: Kohler KH00630TO4N.
poles: 4, wires: 12, technology: brushless, rotating‑field, single bearing with direct coupling.
insulation class: H , protection rating: IP23.
Power factor: 0.8; voltage regulation ±1 % (AVR); capable of sustaining 300 % rated current for 10 s.
total harmonic distortion: 3.3 % at no‑load; 2.1 % on linear load.
overspeed limit: 2250 rpm.
Dimensions
soundproofed version (M137): 2100 × 938 × 1285 mm, dry weight 789 kg, fuel tank 100 L, noise 79 dB(A) at 1 m, 69 dB(A) at 7 m.
compact version (without canopy): 1700 × 896 × 1200 mm, dry weight 601 kg, tank 100 L.
optional double‑wall tank versions: 240 L or 470 L tanks with corresponding enlarged dimensions and weights.
Transport Dangerous Goods
Generators may be considered dangerous goods for air or sea transport. If a supplier certifies that the engine has been flushed and purged of flammable liquids in accordance with Special Provision A70, the generator is not subject to IATA Dangerous Goods Regulations. Without this certification, it must be shipped in full compliance with IATA DGR procedures.
Instructions for use
for power calculations (sizing and loading), consult your MSF technical department.
never refuel while the engine is running; allow the unit to cool before filling the tank.
for proper earthing and safety, follow the MSF energy guidelines.
follow the manufacturer's manual for starting, stopping and operating procedures; monitor oil pressure, coolant temperature and voltages via the control panel.
Maintenance
routine maintenance interval is every 250 operating hours; local conditions may require different intervals consult your technical department.
use the appropriate logbook for 1800 rpm generators to record service operations.
inspect and tighten fittings periodically, change oil and filters at specified intervals and keep air inlets clear.
