(Dosatron D3RE2) BYPASS, 2" + valves, assemblage

STD CWATDOSPD18

Valid Article

Former Code(s): CWATDOSPBP- CWATPUMSD3BP
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

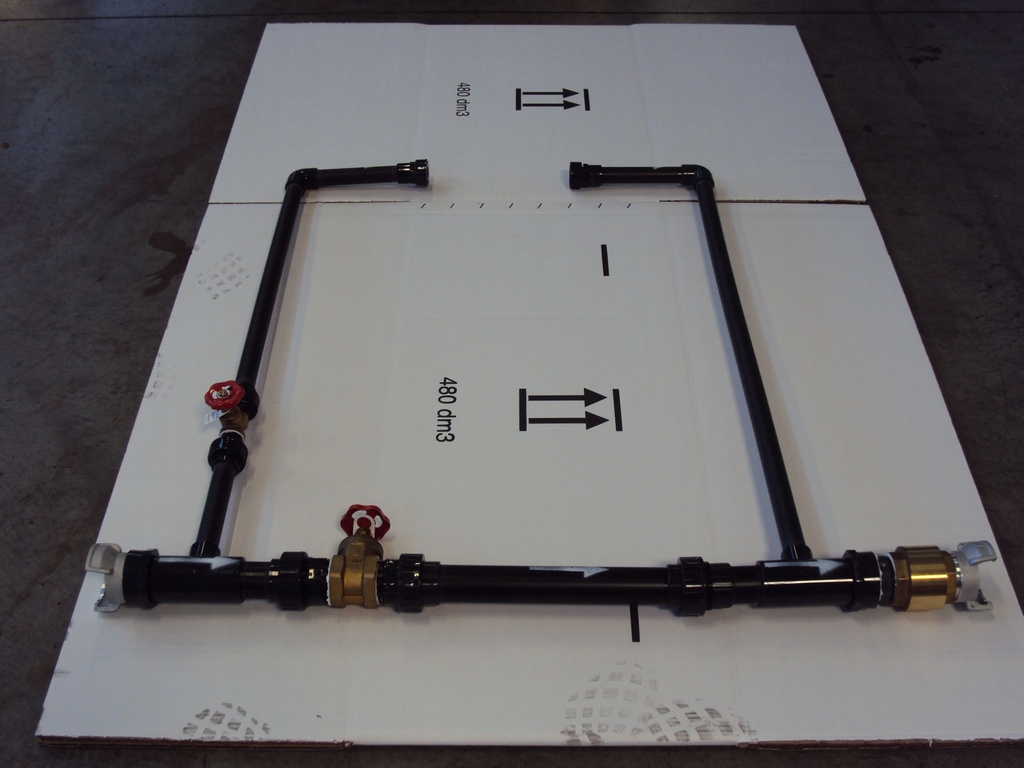

(Dosatron D3RE2) BYPASS, 2 gate valves + non-return valve

Form

Bypass assembly for dosing pump. Composed of PVC pipes, valves and two non return valves. Closed Article: assembled by MSF. Per assembled set.

Fit

Allows to install the dosing pump Dosatron in bypass. Compatible as it is with lines of standard network with 2" or ND50 Guillemin couplings. Compatible with other diameters (up to 3" or ND80) by adding appropriate reductions.

Function

Used for the dosing pump to increase its capacity to treat from 3 m³/h up to 18 m³/h.
