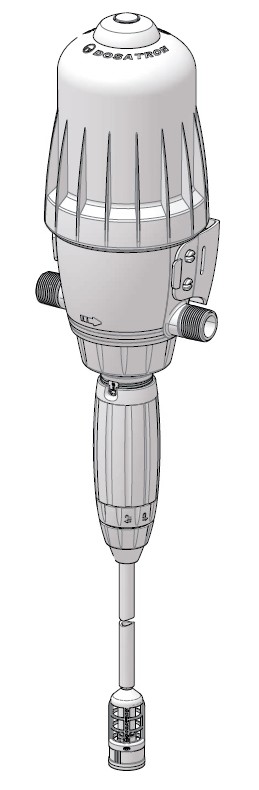

DOSING PUMP (Dosatron D3RE2) 10l/h-3m³/h
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
DOSING PUMP (Dosatron D3RE2)
Form
Water-powered mechanical proportional dosing pump. Installation makes continuous chlorination of water possible. The hydraulic motor capacity allows for a flow of minimum 0.7 m³/h and maximum 3 m³/h (18m³/h with by-pass assembly) of water to be dosed. Maximum nominal pressure: 5 bar. Closed article: Dosatron, model D3RE2. Per piece.
Fit
Part of the dosing pump module KWATMDOS01-.
Installed within water supply systems to chlorinate drinking water.
Input and output ¾”. Can be mounted on a single line network or with the bypass module upstream of a tank. Does not require power.
Function
Used for injection of chlorine solution within drinking water supply systems.
The dosing pump is powered by the hydraulic energy available in the network where it is installed.
Read the instruction manual carefully before installing in order to make sure the correct settings are applied.
Lifespan of at least one year if well maintained.
![[KWATMDOS01-] MODULE, DOSING PUMP, 10 l/h - 3 m³/h (Dosatron)](/web/image/product.template/551923/image_256/%5BKWATMDOS01-%5D%20MODULE%2C%20DOSING%20PUMP%2C%2010%20l-h%20-%203%20m%C2%B3-h%20%28Dosatron%29?unique=8eb96ab)
![[CWATDOSP301] (Dosatron D3 range) O-RING (JDI001) rubber](/web/image/product.template/549624/image_256/%5BCWATDOSP301%5D%20%28Dosatron%20D3%20range%29%20O-RING%20%28JDI001%29%20rubber?unique=6ecb123)
![[CWATDOSP302] (Dosatron D3 range) GASKETS, set](/web/image/product.template/545856/image_256/%5BCWATDOSP302%5D%20%28Dosatron%20D3%20range%29%20GASKETS%2C%20set?unique=ae06c6b)
![[CWATDOSP303] (Dosatron D3 range) PART (PCDI030)](/web/image/product.template/567619/image_256/%5BCWATDOSP303%5D%20%28Dosatron%20D3%20range%29%20PART%20%28PCDI030%29?unique=90037d7)
![[CWATDOSP304] (Dosatron D3 range) WASHER air release valve (MPDI184)](/web/image/product.template/549636/image_256/%5BCWATDOSP304%5D%20%28Dosatron%20D3%20range%29%20WASHER%20air%20release%20valve%20%28MPDI184%29?unique=d5a37c0)
![[CWATDOSP305] (Dosatron D3 range) SUCTION VALVE](/web/image/product.template/551163/image_256/%5BCWATDOSP305%5D%20%28Dosatron%20D3%20range%29%20SUCTION%20VALVE?unique=86f7fe8)
![[CWATDOSP307] (Dosatron D3 range) PART (PDI730)](/web/image/product.template/565161/image_256/%5BCWATDOSP307%5D%20%28Dosatron%20D3%20range%29%20PART%20%28PDI730%29?unique=90037d7)
![[CWATDOSP308] (Dosatron D3 range) BELL HOUSING (MPDI186BP) + bypass + seal](/web/image/product.template/549633/image_256/%5BCWATDOSP308%5D%20%28Dosatron%20D3%20range%29%20BELL%20HOUSING%20%28MPDI186BP%29%20%2B%20bypass%20%2B%20seal?unique=36767f9)
![[CWATDOSP309] (Dosatron D3 range) PART (J009)](/web/image/product.template/565176/image_256/%5BCWATDOSP309%5D%20%28Dosatron%20D3%20range%29%20PART%20%28J009%29?unique=90037d7)
![[CWATDOSP310] (Dosatron D3 range) HYDRAULIC ENGINE upper part](/web/image/product.template/550880/image_256/%5BCWATDOSP310%5D%20%28Dosatron%20D3%20range%29%20HYDRAULIC%20ENGINE%20upper%20part?unique=aa10f96)
![[CWATDOSP311] (Dosatron D3 range) SUCTION HOSE transparent](/web/image/product.template/548928/image_256/%5BCWATDOSP311%5D%20%28Dosatron%20D3%20range%29%20SUCTION%20HOSE%20transparent?unique=9d80819)
![[CWATDOSP312] (Dosatron D3 range) DOSING PISTON lower part](/web/image/product.template/550836/image_256/%5BCWATDOSP312%5D%20%28Dosatron%20D3%20range%29%20DOSING%20PISTON%20lower%20part?unique=36a8e00)
![[CWATDOSP313] (Dosatron D3 range) BODY (PJDI113)](/web/image/product.template/555079/image_256/%5BCWATDOSP313%5D%20%28Dosatron%20D3%20range%29%20BODY%20%28PJDI113%29?unique=31fa4f5)
![[CWATDOSP314] (Dosatron D3 range) PART (PJDI114)](/web/image/product.template/549622/image_256/%5BCWATDOSP314%5D%20%28Dosatron%20D3%20range%29%20PART%20%28PJDI114%29?unique=5bc238c)
![[CWATDOSP315] (Dosatron D3 range) VALVE non-retour (PJDI115)](/web/image/product.template/566283/image_256/%5BCWATDOSP315%5D%20%28Dosatron%20D3%20range%29%20VALVE%20non-retour%20%28PJDI115%29?unique=90037d7)
![[CWATDOSP316] (Dosatron D3 range) PART (PJDI116)](/web/image/product.template/568426/image_256/%5BCWATDOSP316%5D%20%28Dosatron%20D3%20range%29%20PART%20%28PJDI116%29?unique=90037d7)
![[CWATDOSP317] (Dosatron D3 range) FILTER strainer](/web/image/product.template/548927/image_256/%5BCWATDOSP317%5D%20%28Dosatron%20D3%20range%29%20FILTER%20strainer?unique=aa10f96)
![[CWATDOSPD18] (Dosatron D3RE2) BYPASS, 2" + valves, assemblage](/web/image/product.template/545843/image_256/%5BCWATDOSPD18%5D%20%28Dosatron%20D3RE2%29%20BYPASS%2C%202%22%20%2B%20valves%2C%20assemblage?unique=1b5f9a6)
![[CWATDOSP318] (Dosatron D3RE2 protection filter) FILTER ELEMENT, 140μm](/web/image/product.template/560398/image_256/%5BCWATDOSP318%5D%20%28Dosatron%20D3RE2%20protection%20filter%29%20FILTER%20ELEMENT%2C%20140%CE%BCm?unique=1d0ef5b)
![[LEAFDOSP01UNM] (Dosatron) USER GUIDE + CD-ROM or USB stick](/web/image/product.template/545850/image_256/%5BLEAFDOSP01UNM%5D%20%28Dosatron%29%20USER%20GUIDE%20%2B%20CD-ROM%20or%20USB%20stick?unique=0f1e3a2)
