MID-UPPER ARM CIRCUMFERENCE TAPE (MUAC) adult

Definition

Device for measuring the middle-upper arm circumference in adults (18 years and older), pregnant or breastfeeding women and the elderly.

The MUAC is particularly sensitive to acute weight loss, since it reflects peripheral muscle and subcutaneous adipose tissue degradation. A circumference < 160 mm indicates a risk of mortality. The MUAC provides a rapid assessment of the nutritional status of adults and is increasingly used as a method to identify adults requiring immediate treatment.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Flexible but non extensible polypropylene, washable
  • White tape with reading window
  • Dimensions: ± 25 mm x 290 mm
  • Graduations every 2 mm (accuracy 1 mm)

Instructions for use

The brachial circumference is always measured on the left arm, halfway between the shoulder and the elbow. The arm should be relaxed along the body.

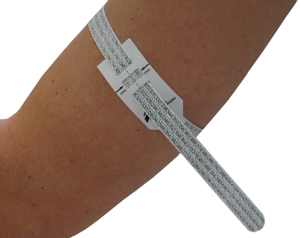

  • Insert the strip following the arrows to form a bracelet
  • Slip the bracelet over the wrist and slide it halfway up the arm
  • Tighten the bracelet in the middle of the arm. Make sure it is not too tight or too loose.
  • Read the number that appears completely in the window
MUAC Cut-off points
Malnutrition classificationAdultsPregnant/ breastfeeding womenElderly people
Severe< 160 mm< 170 mm< 160 mm
Moderate160 to < 185 mm170 to < 185 mm160 to < 175 mm
Global< 185 mm< 185 mm< 175 mm
At riskno reference185 to < 210 mmno reference

MSF requirements

Model developed by MSF nutritionists in 2003 to assess the nutritional status of adults in emergency situation.
