(blds.syst.) SAMPLING SET, with wings, 23 G (Vacutainer)

STD STSSBSVVN23W

Valid Article

Former Code(s): ELAEBSVV23S ELABBSVV23S
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
A01010502 - Needles for collection under vaccum, w/o safety systems
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



BLOOD SAMPLING SYSTEM (Vacutainer)


Definition

Blood sampling system in 2 parts:

  • needle or winged needle set (to be chosen according to needs) with Luer adaptor
  • tube holder

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

Plastic tube holder

  • Reusable: can be reused 100 times
  • Push button allowing to release the needle into a sharps container

Needle

  • Sterile, for single use
  • Length: 40 mm
  • 21 G
  • Cover
  • Piercing-cap needle with sleeve

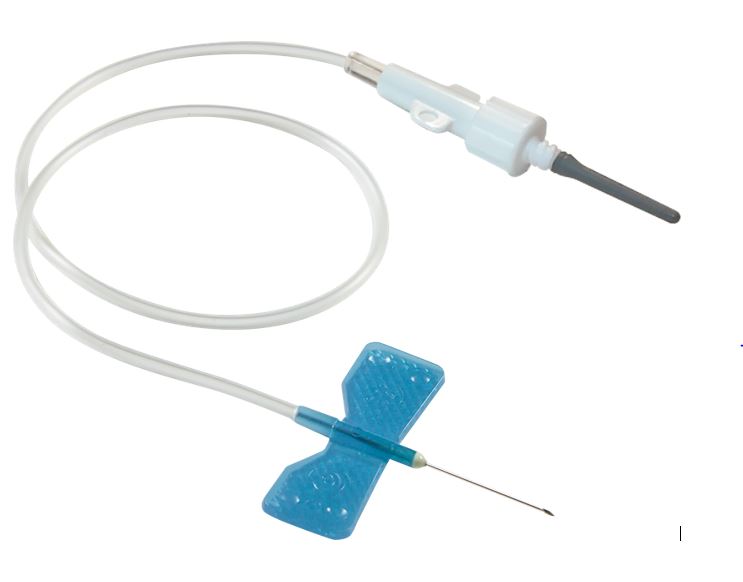

Winged set

  • Sterile, for single use
  • Stainless steel needle with protector
  • PVC blue wings
  • Length: 19 mm
  • 23 G
  • Plastic tubing, prefered length 17.8 cm (30.5 cm also available)
  • Multiple sample Luer adaptor
  • Piercing-cap needle with sleeve

Packaging & Labelling

Needle set with wings: individual sterile peel-off packaging. Box of 50 units (4x50/cardboard).

Needles 21G: individual plastic cover (sterile). Box of 100 (10x100/cardboard).

(Cf Introduction: Packaging and labelling)

Instructions for use

Winged set

Device intended for difficult veins and newborn children.

The procedure to be followed is the same as for the needles.

Tube holder

The tube holder must be cleaned and disinfected between each patient with a 0.5% detergent-disinfectant solution for medical equipment (i.e. 25 ml = 1 stroke of dosing pump for 5 litres water).

(Cf Introduction: Disinfection and sterilization in the field)

In case of viral haemorrhagic fever, the holder is strictly for single use!

Please consult the “Manual of nursing Care Procedures, MSF, 2020” available online via the Nursing care working Group sharepoint page.

Storage

Shelf life

  • winged set: 2 years
  • needle 21G: 5 years

Waste management

Immediately after use, dispose of the soiled needle into a container for the disposal of sharps waste. Get rid of in a sharps pit.

(Cf Public Health Engineering In Precarious situations, MSF, 2010, Chapter 6)

MSF requirements

The tube holder with needle ejector allows dropping the needle into a sharps container without handling it.

Some restricted information has been hidden. Sign in to see this information
