ELISA WASHER (BioTek 50TS), 100-240 V, 50-60 Hz
STD
ELAEELIE3--
Valid Article
Account code:
60110
HS Code:
901890
Last Updated on:
11/12/2024, 19:16:35
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

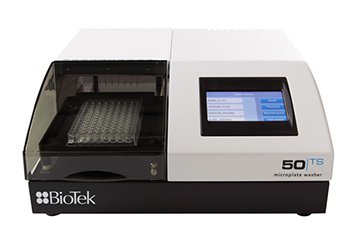

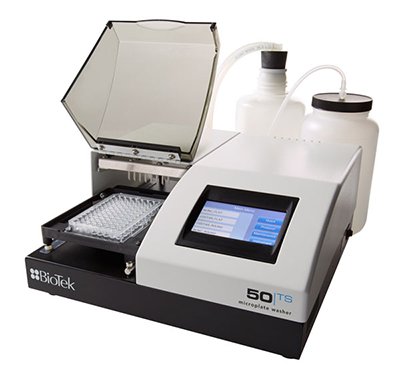

ELISA WASHER (BioTek 50TS)
Definition
Automated microplate washer for microplates containing multiple individual sample wells.
Specifications
Automated washing of 96-well ELISA microtiter plates in projects with high ELISA throughput [high amount of ELISA plates].
Some restricted information has been hidden. Sign in
to see this information
Quality standards
EN IEC 61010-1, 2010, edition 3, +2019 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
Technical specifications
- 96 well washing
- Wash cycles 1-10
- Shaking programmable in minutes and seconds up to 30 minutes
- Soak time: programmable in minutes and seconds up to 30 minutes
- Power supply mains AC: 100-240V, 50-60Hz
- Power consumption: 40 W
- Operating conditions: 15 to 40°C
- Relative humidity: < 80% non-condensing
Dimensions
- 356 x 406 x 165 mm
- 9.8 kg
Supplied with the Article
- Power cord
- Operator's manual
- 12- manifold
- Microplate carrier
- Two 2 litres supply bottles
- One 2 litres waste bottle
- Waste tubing set
- Supply tubing set
- Aerosol cover
- Two thumb screws for attaching cover
- Stylus
- In-line vacuum filter
- Check valves (2)
Instructions for use
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
Some restricted information has been hidden. Sign in
to see this information
Precautions for Use
Secure all electrical devices in the laboratory with a UPS double conversion. To define the best sizing of the UPS, contact your biomedical or energy referent.
Some restricted information has been hidden. Sign in
to see this information
Some restricted information has been hidden. Sign in
to see this information
