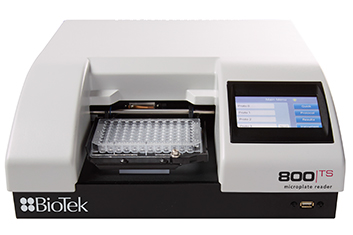

ELISA READER (BioTek 800TS)
Definition
Single channel microplate reader used to measure absorbance with multiple ELISA plate formats.
Specifications
Reader for ELISA tests.
Quality standards
- EN IEC 61326-1, 2020, edition 3, Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
- EN IEC 61010-1, 2010, edition 3, +2019 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
Technical specifications
800TS Absorbance Microplate Reader
- Software: Gen 5
- Wavelength: 400 to 750 nm (UV optional)
- Measurement range: 0 to 4.0 OD (normal and rapid read modes); 0 to 3.0 OD (sweep read mode)
- Filter wheel capacity: 5 positions
- Filter arrangements: 405, 450, 490 and 630 nm (UV option)
- Microplate types: 6- 96 well
- Possibility to shake plate
- Reading speed: 11 secs /96 wells (sweep mode)
- Light source: Tungsten
- Protocol space: 55
- Power supply: external 24V, compatible with 100-240 V, 50 to 60 Hz
- Connectivity: 1 USB port for computer control, 1 USB port for printer
Dimensions
- Dimensions: 419 mm x 381 mm x 178 mm
- Weight: 10 kg
Supplied with the Article
- Power cord
- Filter wheel (ref. 7332000) with 4 standard filters:
- 405 nm (ref. 7334405)
- 450 nm (ref. 7334450)
- 490 nm (ref. 7334490)
- 630 nm (ref. 7334630)
- one blanc filter
- Operator's manual
- Printer cable (ref. 71072)
- RS serial cable (ref. 75034)
- USB cable (ref. 75108)
- USB driver software (ref. 7090204)
- Dust cover (ref. 7332040)
Instructions for use
Follow the instruction manuel.
Protect from dust.
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
Precautions for Use
Secure all electrical devices in the laboratory with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.
MSF requirements
In MSF, ELISA tests are currently used to:
- monitor TSH in MDR TB patients
- confirmation of Chagas disease
- in high case loads of some serological tests
- for operational research purposes
More tests will be validated in the future for applications if no other alternative like rapid tests are available.
