OPERATING TABLE, mechanical / hydraulic (Medifa 5000)
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

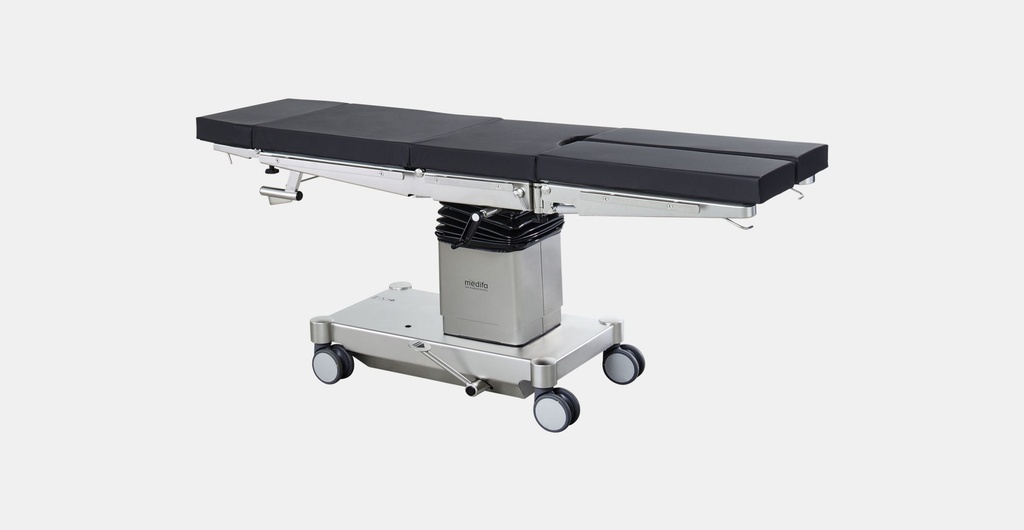

TABLE, OPERATING, mechanical (Medifa 5000)
Definition
A mobile, manually-operated hydraulic table designed to be adjusted to support a patient during many types of surgical interventions.

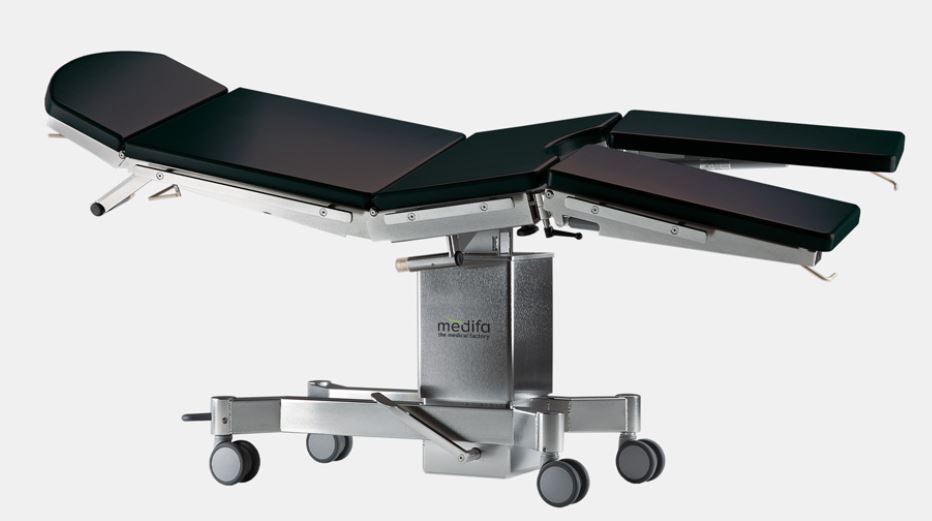

The table surface consists of many articulated sections that can be elevated or lowered for contouring to accommodate numerous anatomical positions (e.g., the whole table top may be adjusted to form a curved surface) to satisfy the requirements of many clinical specialties. It is typically operated via an integral foot-pedal(s) that adjust the table top position.
Specifications
Quality standards
Technical specifications
Mechanic-hydraulic table incl. head- and leg plates
- Upholstery: standard PUR green, 60 mm thickness
- Continuous X-ray cassette tunnel from head to foot end
- Lateral guide rails for attachment of accessories, stainless steel, 25 x 10 mm
- Four double swivel castors ø 125 mm with central brake, antistatic, two castors with direction stability
- Maximum permissible overall load: 200 kg
- Weight of the table: ca. 160 kg
Different adjustments of the table:
- Height adjustment by foot operated hydraulic pump from 75 cm up to 100 cm
- Trendelenburg / reverse trend adjustment, assisted by pneumatic cylinder from -30° up to +30°
- Lateral tilt by removable hand crank up to 20° on both sides
- Back rest adjustment assisted by pneumatic cylinder: -40° up to +70°
- Headrest: adjustable from -45° to +45° by gas spring
- Split leg plates: easy adjustment by gas spring from -90° to +30°, 180° spacing
- Adjustment to flex / reflex position
- Only for table ref 501135: manual longitudinal shift up to 31 cm
Dimensions
- Total length: 208 cm
- Overall width: 60 cm
- Width of the laying area: 520 mm
Packaging & Labelling
The table is supplied assembled, with user manual in French, English and Spanish.
Supplied with the Article
STANDARD ACCESSORIES delivered with the OT table (table with headrest and leg plates)
see table below
To be Ordered Separately
The orthopaedic extension and the related accessories are compiled in KMEDMTAO1-- (see related articles). They are only required under specific circumstances and can be used on both models of the OT table. Contact your surgical referent at headquarters for ordering.
see table below
Instructions for use
Protect the cushions with an operative field and a rubber drawsheet (see related articles below).
Place the table on a level floor.
Maintenance
At the beginning of shift, after each surgical intervention and at the end of the surgical program or day (after the last patient), the table needs to be be cleaned and disinfected with a detergent/disinfectant for surfaces/non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix with other products. Make sure to wet the surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.
Once a week: remove the detachable parts of the OT table and clean them one by one.
MSF requirements
Simple but multifunctional table, entirely mechanical (functioning without electricity) equipped with DIN rails and standard accessories for general, gynaecological and abdominal surgery in the operating theatre.
Perfectly suitable for emergency programmes and surgical assistance programmes in remote area.
Extra Tables
QTY | Ref Medifa | Code MSF | Article info STANDARD ACCESSORIES / ACCESSOIRES GENERAUX |
5 | 61511 | EEMDTAOA101 | Rotatable clamp, for fixation of accessories with round rod (18 mm) Clameau de serrage rotatif, pour fixation des accessoires pour tiges rondes (18 mm) |
2 | 61551 | EEMDTAOA102 | Clamp for square rod (25 x 10 mm) Clameau de fixation pour tige carrée (25 x 10 mm) |
1 | 61750 | EEMDTAOA103 | Anaesthesia screen (solid) Extendible to both sides, with clamp, stainless steel Arceau d'anesthésie (solide), extensible des deux côtés, avec clameau de fixation, acier inox |
2 | EEMDTAOA104 | Arm rest standard, including clamp and fixture strap, swiveling, stainless steel, upholstery: PUR, L x W x H: 600 x 165 x 60 mm Appui-bras standard, clameau et sangle de fixation inclus, pivotant, acier inox, coussin: PUR, LxlxH: 600x165x60mm | |
2 | 61361 | EEMDTAOA105 | Holder for body supports: adjustable in height, extendible and swiveling (360°). Stainless steel. Positioning of body supports by means of ball joint Maintien pour support torse: réglable en hauteur, amovible, extensible et pivotant (360°). Acier inoxydable. Support du corps réglable par rotule |
1 | 61361_1 | EEMDTAOA106 | Support pubis, sacrum and sternum. Ø 100 mm. Stainless steel, upholstery: PUR. Fits on the holder ref 61361 Support pubis, sacrum et sternum. Ø 100 mm. Acier inoxydable, coussin: PUR. S'adapte au support réf 61361 |
1 | 61361_2 | EEMDTAOA107 | Body support for side and shoulder. L x W 220 x 110 mm. Stainless steel, upholstery: PUR. Fits on the holder ref 61361 Support corporel pour le côté et l'épaule. Lxl 220x110mm. Acier inoxydable, coussin: PUR. Convient pour le support réf 61361 |
1 | 61361_3 | EEMDTAOA108 | Body support for back and buttocks. L x W 220 x 110 mm. Stainless steel, upholstery: PUR. Fits on the holder ref 61361 Support corporel pour le dos et les fesses. Lxl 220x110mm. Acier inoxydable, housse : PUR. Convient pour le support ref 61361 |
1 | 61800 | EEMDTAOA109 | Infusion holder, extendible, 4 hooks, including clamp. Stainless steel Tige porte-sérum, téléscopique, 4 crochets, clameau de fixation inclus, Acier inoxydable |
2 | 61700 | EEMDTAOA110 | Leg rest according to Goepel. Piece. For positioning patient in lithotomy position. Stainless steel, upholstery: PUR. Rotatable clamp (61511 or 61512) and fixture straps (B81600M1) to be ordered separately Appui-jambes Goepel . Pièce. Pour le positionnement du patient en position de lithotomie. Acier inoxydable, housse: PUR. Clameau rotatif (61511 ou 61512) et sangles de fixation (B81600M1) à commander séparément |
1 | 91612 | EEMDTAOA111 | Instrument disposal tray, rectangular: L x W x H: 325 x 265 x 65 mm. Swiveling. Including clamp. Stainless steel Bassin collecteur d'instruments de forme rectangulaire: L x l x H: 325x265x65mm. Pivotant. Clameau de fixation inclus. Acier inoxydable |
1 | 61405 | EEMDTAOA112 | Body and leg strap, L x W: 2,300 x 80 mm, steplessly adjustable, including clamp Sangle de corps et jambes, L x l: 2,300 x 80 mm, réglable en continu, clameau de fixation inclus |
QTY | Ref Medifa | Code MSF | Article info STANDARD ACCESSORIES / ACCESSOIRES GENERAUX |
1 | 61231 | EEMDTAOA113 | Arm and hand surgical table levitating, adjustable in height and radiolucent, including clamps and upholstery (Artificial leather covered foam), L x W x H: 600 x 340 x 35 mm Table chirurgicale bras et main en lévitation, réglable en hauteur et radiotransparent, clameau de fixation et housse inclus (mousse recouverte de cuir artificiel), L x l x H: 600x340x35mm |
1 | 341045 | EEMDTAOA114 | Accessory trolley: for central storage of accessories. Five slots for storage of upholstery segments. Five side rails (25 x 10 mm) for storage of further accessories. One shelf for storage of small accessories. L x W x H: 765 x 700 x 1670 mm. Four double swivel castors (two with brake). Stainless steel Chariot porte-accessoires: pour le rangement central des accessoires.Cinq emplacements pour le rangement des segments de rembourrage. Cinq rails latéraux (25 x 10 mm) pour le rangement d'autres accessoires. Une étagère pour le rangement de petits accessoires. LxlxH: 765x700x1670mm. Quatre roulettes doubles pivotantes (deux avec frein). Acier inoxydable |
1 | 61115 | EHOECUSG002 | Head ring made of silicone gel for adults Anneau de tête en gel de silicone pour adultes |
1 | 61910 | EHOECUSG007 | Head positioning pad adults made of silicone gel for prone position Coussin de positionnement de la tête en gel de silicone pour décubitus ventral pour adultes |
1 | 61921 | EHOECUSG008 | Flat bottom chest roll medium made of silicone gel Rouleau de poitrine à fond plat moyen en gel de silicone |
1 | 61940 | EHOECUSG009 | Heel pads made of silicone gel, pair Talonnettes en gel de silicone |
QTY | Ref Medifa | Code MSF | Article info Orthopaedic accessories / Accessoires orthopédiques |
1 | 63000_1 | EEMDTAOA151 | EXTENSION DEVICE Levitating. Max. patient weight: levitating 136 kg. with supporting bars 250 kg. Stainless steel Included in delivery: Fixation adapter for operating table incl. pelvis part with upholstery, Countertraction post for perineum and for neck of femur, 2 swiveling extension bars with double joints, 2 swiveling and height adjustable drawing spindles with adaption for extension shoe holders, 1 trolley with storage basket for additional accessories, 2 height adjustable supporting bars DISPOSITIF D'EXTENSION en lévitation. Poids max. du patient : en lévitation 136kg. avec support de stabilisation 250kg. Acier inoxydable Inclus dans la livraison: Adaptateur de fixation à la table d'opération avec section pelvienne avec coussin, barre de contre-traction pour le périnée et le col du fémur, deux barres articulées pivotantes avec double articulation, deux fixations de barre articulée pour le réglage en hauteur et en longueur de contre-traction, 1 chariot avec panier de rangement pour les accessoires supplémentaires, 2 supports de barres pour la stabilisation |
2 | 61010 | EEMDTAOA152 | EXTENSION SHOE adult, piece, for fixation of foot CHAUSSURE D'EXTENSION adulte, pièce, pour la fixation du pied |
2 | 61020 | EEMDTAOA153 | EXTENSION SHOE child, piece, for fixation of foot CHAUSSURE D'EXTENSION enfant, pièce, pour la fixation du pied |
1 | 63025_1 | EEMDTAOA154 | COUNTERTRACTION POST femur: for extension in lateral position. Radiolucent perineal arc POSTE DE CONTRE-TRACTION fémur: pour l'extension en position latérale. arc périnéal radiotransparent |
1 | 63045 | EEMDTAOA155 | COUNTERTRACTION POST tibia/fibula: for positioning and fixation of patient during surgeries at lower leg. Radiolucent padded roll. Adjustable in height and inclinable CONTRE-TRACTION POST tibia/péroné: Pour positionnement du patient lors d’opérations sur le tibia. Rouleau en mousse radiotransparent. Réglable en hauteur et inclinable |
1 | 63030 | EEMDTAOA156 | PELVIS PLASTER CAST UNIT: Usable for adults and children. Slidable countertraction post. Stainless steel Dispositif pour plâtre du bassin: Utilisable pour les adultes et les enfants. Barre de contre-extension coulissante. Acier inoxydable |
1 | 63060 | EEMDTAOA157 | HORSESHOE HOLDER Kirschner: for extensions using Steinmann nails. Stainless steel ETRIER de Kirschner: pour extension en utilisant une broche „Steinmann“. Acier inoxydable |
1 | 63026 | EEMDTAOA158 | LEG SUPPORT with fixture straps: for positioning of healthy leg during extension. Tiltable upholstery by means of ball joint. Upholstery: Viscoelastic foam L x W x H: 400 x 115 x 80 mm, detachable UPPORT DE JAMBES + sangles: pour le positionnement de la jambe saine pendant l'extension. Support inclinable par articulation à rotule. Matelas: mousse visco-élastique L x l x H: 400x115x80mm, amovible |
1 | 63070_1 | EEMDTAOA159 | TRANSFER LEG REST, pair: for preoperative positioning of legs, Including upholsteries. L x W x H: 600 x 200 x 35 mm REPOSE-JAMBES de transfert, paire: pour le positionnement préopératoire des jambes, matelas inclus. L x l x H: 600x200x35mm |
1 | 62050 | EEMDTAOA160 | ARM EXTENSION DEVICE: for intramedullary nailing of humerus. Including tension rod, countertraction post (radiolucent) and clamp DISPOSITIF D'EXTENSION DU BRAS: Pour clou intramédullaire de l'humérus. Tige de contre-traction (radiotransparente), barre d’extension et clameau inclus |
QTY | Ref Medifa | Code MSF | Article info Orthopaedic accessories / Accessoires orthopédiques |
1 | 62055 | EEMDTAOA161 | WEINBERGER HAND CUFF: to secure fixation of hand and upper arm during intramedullary nailing of humerus. Radiolucent, can be sterilized PINCE A MAIN WEINBERGER: fixation sécurisée de la main et du bras pendant l'enclouage intramédullaire de l'humérus. Radiotransparent, peut être stérilisé |
1 | 61330 | EEMDTAOA162 | MENISCOTOMY ROLL + clamp, adjustable in height. Stainless steel, upholstery: PUR ROULEAU DE MENISCOTOMIE + pince, réglable en hauteur. Acier inoxydable, rembourrage: PUR antistatique |
1 | 61395 | EEMDTAOA163 | HEAD SUPPORT for shoulder surgery: for comfortable and safe positioning of patient´s head during shoulder surgeries. Extendible. Attachment with universal adapter. Incl. upholstery SUPPORT DE TÊTE pour chirurgie de l'épaule: pour un positionnement confortable et sûr de la tête du patient pendant les opérations de l'épaule. Extensible. Fixation à l'adaptateur universel. Jeu de matelas inclus |
1 | 61560 | EEMDTAOA115 | SIDE RAIL EXTENSION, 32 cm, + clamp: extends side rail up to 320 mm. For attachment of accessories at side rail (EU). Stainless steel RALLONGE DE BARRIERES LATERALES 32cm, + clameau: rallonge de rail latéral jusqu'à 320 mm. Pour fixation des accessoires sur le rails porte-accessoires (EU). Acier inoxydable |
1 | 61100 | EEMDTAOA164 | UNIVERSAL ADAPTER: for attachment of variety of head positioning and neurosurgical accessories. Stainless steel ADAPTATEUR UNIVERSEL: Pour la fixation de divers accessoires de positionnement de la tête et de neurochirurgie. Acier inoxydable |
1 | 63090 | EEMDTAOA165 | TROLLEY for extension device: for storage and transport of extension device and accessories. Stainless steel CHARIOT pour dispositif d'extension: Pour le transport et le rangement du dispositif d’extension démonté ainsi que pour les accessoires. Acier inoxydable |
