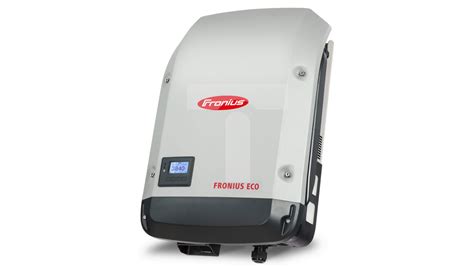

INVERTER PV (Fronius Eco 27.0-3-S) 27kVA 580/850V

Form

The inverter transforms the direct current generated by the solar modules into alternating current. This alternating current is fed into the electric grid synchronously with the grid voltage.

  • inverter type: 3-phase transformerless
  • number of MPP-Trackers: 1
  • usable MPP voltage range: 580 - 850 V
  • number of DC connections: 6
  • max. PV generator output:37.8 kWp
  • AC nominal output: 27000 W
  • max. output power: 27000 VA
  • AC output current: 39 A
  • dimensions (H x W x D): 725 x 510 x 225 mm
  • weight: 35.7 kg
  • water and dust protection: IP 66

Par piece.

Fit

  • The maximum MPP current (nominal current, operating current) Imax is 15 A per string
  • Solar panel strings can be connected with 2,5 - 10mm² cables
  • MC4 type connector‌ can be connected to the solar panel strings
  • AC output can be connected with 10 - 25 mm² cables
  • Compatible with datalogger (built-in communication card ) and network interface via Ethernet/Wlan

Function

A solar inverter converts the direct current (DC) produced by photovoltaic modules into alternating current (AC) synchronized with the grid. Designed for grid-connected systems, it continuously monitors voltage, frequency, and grid stability to ensure safe operation. It starts feeding power into the grid when solar input is sufficient and disconnects automatically during abnormal conditions. The inverter maximizes energy yield using MPPT and reduces output if it overheats to protect internal components.

The inverter has been developed exclusively for use in grid-connected photovoltaic systems.
