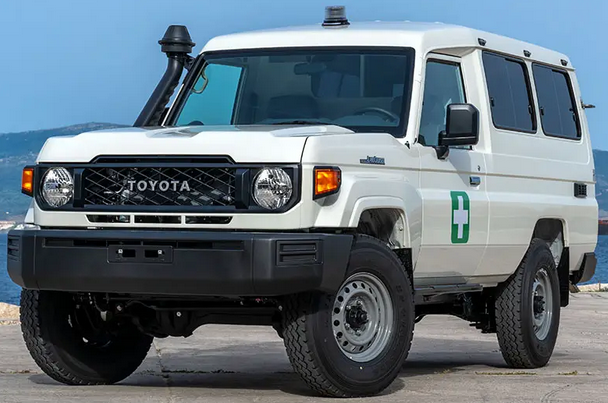

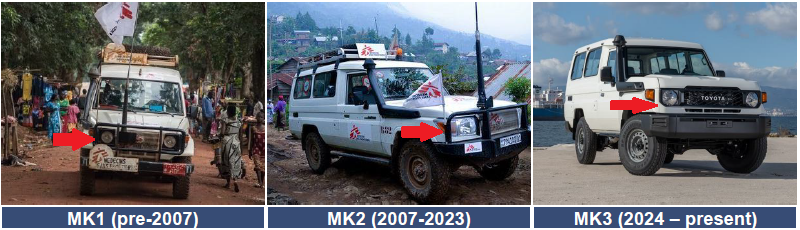

LANDCRUISER 4x4 (GDJ78, MK3) diesel RHD, sanitary transport

NST TTOYGD78DSAR

Valid Article

Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
SC subscriptions: included in supply or field tools
OC subscriptions: included in supply or field order tools (e.g. UniField)
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

LANDCRUISER 4x4 (HZJ78/GDJ78) sanitary transportation

Definition

Converted vehicle for the sanitary transport of a person or patient, based on an MSF standard vehicle type HZJ78/GDJ78.

The essential part of the conversion consists of the integration of a cell giving space to a functional arrangement and the separation of the steering cabine. The concept and composition of it all allows for a proper cleaning and desinfection of the cell.

The cell or patient unit is exclusively intended for the transport of people.

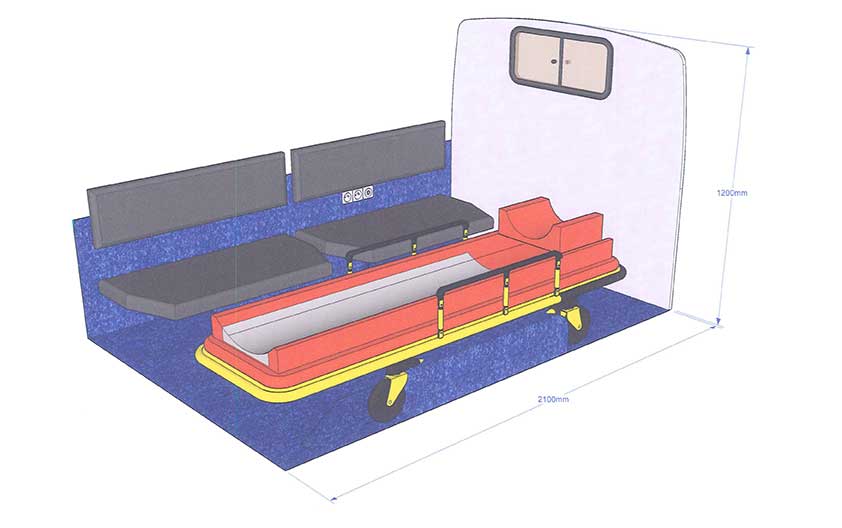

Capacity of the patient cell:

  • Transport of 1 patient lying on a stretcher (kit transport patient) + 4 places for seated persons, or
  • 8 persons seated (4 double benches)

Capacity in the steering cabin:

  • seats for the driver + 2 places

Different levels of medical equipment are defined to allow the stabilisation of the patient, if needed.

Following the example of a standard vehicle, the converted vehicle incorporates the standard preparation of a vehicle by your technical department, such as the roof, spare wheel(s), hi-lift jack, etc.

Description:

The cell or unit in the back is composed of: a floor, lateral panels, a dividing wall with a sliding window separating the cell from the drivers cabin, as well as ceiling coverage made of materials that are cleanable and do not rot.

Technical specifications:

By default the unit is equiped with the following equipment:

  • Three perfusion systems on the ceiling with sliding hooks.
  • A needle container, a box for gloves and a waste bin of 3 liters.
  • A holding net fixed on the ceiling.
  • A semi-transparant layer up till 2/3th of the height on the windows.

Materials:

  • partitions made of materials that can be cleaned and do not rot.

Accessories and equipment:

  • The equipment such as the jack, wheel brace, driver toolkit and the telecommunication equipment are all located in the drivers cabin.

Electricity - equipment and installation:

  • Four (4) led lights on the ceiling.
  • One (1) ventilation fan with reversible roof operated from the drivers cabin.
  • One (1) fixed revolving light operated from the drivers cabin.
  • Two (2) 12 volt sockets, sigarette lighter style with standard build-in female sockets.
  • Additional battery of 12 volt - 55AH OPTIMA installed parallel for the power supply of the equipment in the medical compartment.
  • Starter battery replaced by a 55AH OPTIMA battery.
  • Relay with voltage threshold to avoid a complete discharge of the starter battery.

Optional equipment and installations:

  • simple electronical siren
  • electronical siren for public
  • label "Ambulance" (colour to be specified)
  • Logo "Ambulance" (type, shape and colour to be specified)

Instructions for use
