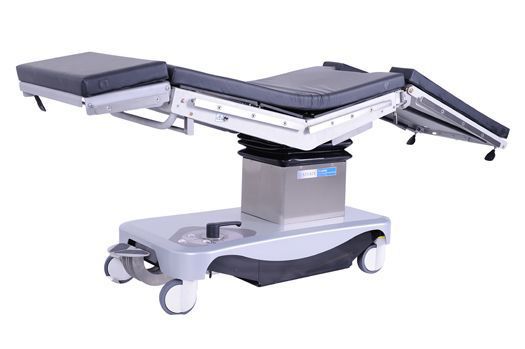

OPERATING TABLE, mechanical / hydraulic (Surginox ST4080AMH)

NST EEMDTAOE21-

Outdated Article

Former Code(s): EHOETABO21-
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z12011202 - Operating tables
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Documents See Related

Add article to list



Add Kit To Wishlist



TABLE, OPERATING, mechanical (Surginox)

Stopped and made NST in 2022 as it is no longer produced. It is replaced by the Medifa 5000 (see “replaced by” at bottom of the page).

Definition

​A mobile, manually-operated hydraulic table designed to be adjusted to support a patient during many types of surgical interventions. The table surface consists of many articulated sections that can be elevated or lowered for contouring to accommodate numerous anatomical positions (e.g., the whole table top may be adjusted to form a curved surface) to satisfy the requirements of many clinical specialties. It is typically operated via an integral foot-pedal(s) that adjust the table top position.

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

EN IEC 60601-2-46, 2019, Medical electrical equipment - Part 2-46: Particular requirements for the basic safety and essential performance of operating tables

Technical specifications

  • Frame: stainless steel and resin protected against corrosion
  • Cushions: black lectrolite ® (antistatic)
  • Equipped with DIN rails (25 x 10 mm) and rails for cassettes (max. 30 x 40 cm)
  • 4 jointed sections:
    • split leg rests with cushions + DIN rails (ref LEG 10 + L 010 L)
    • seat with cushion + DIN rails
    • back with cushion + DIN rails
    • single notched joint headrest with cushion (ref HEAD 01 A + H001 L)
  • Mechanically adjustable tilts by hydraulic jack (crank located at the head of the table):
    • Trendelenburg: 30º
    • reverse Trendelenburg: 30º
    • lateral tilt: 18º
  • Back swivel adjustable from - 40º to 80º by 2 handles located on both sides of the table
  • Height: mechanically adjustable from 750 mm to 1000 mm by hydraulic jack (pedal accessible from the anaesthetist)
  • T-shaped base:
    • 4 floor locking pads for stability
    • 4 multidirectional castors
    • operated by a double pedal
  • Safe load: 135 kg

Dimensions

  • Total length: 915 mm (leg supports) + 1064 mm (seat + back) + 334 mm (headrest)
  • Overall width: 560 mm
  • Width of the laying area: 520 mm

Packaging & Labelling

The table is supplied assembled, with user manual in French, English and Spanish.

(Cf Introduction: Packaging and labelling)

Supplied with the Article

Operating table Surginox + headrest + 2 leg rests, ref ST-4080A-202, supplied with

  • 1 set of cushions for table + headrest + 2 leg rests, ref SU 003 W
  • 7 notched clamps for Goepel leg support, ref TAB233
  • 2 simple clamps for square stems 20 x 20 mm, ref TAB739
  • 1 flexible anaesthetist's screen, ref TAB005
  • 1 pair of shoulder rests with cushions, ref TAB271B
  • 2 armrests with cushions, ref TAB410
  • 1 simple support + 1 lateral support 120 x 170 mm, ref TAB751 + TAB766
  • 1 simple support + 1 lateral support 85 x 85 mm ref TAB751 + TAB763
  • 1 stand for bottles, ref TAB070B
  • 1 pair of Goepel leg supports with cushions, ref TAB376
  • 1 urological pan, ref TAB730R
  • 1 large Devon strap, ref TAB213
  • 1 set of 4 gel cushions for operating table (EHOECUSG001)

To be Ordered Separately

The orthopaedic extension (see related articles) is only required under specific circumstances: contact your surgical referent at headquarters level for ordering.

Instructions for use

Protect the cushions with an operative field and a rubber drawsheet (see related articles below).

Place the table on a level floor.

Maintenance

After each use, the metal frame and the cushions must be cleaned and disinfected with a 0.25 % detergent-disinfectant solution for surfaces (i.e. 20 ml = 1 sachet = 1 stroke of dosing pump for 8 litres water).

Do not rinse (contact time must be minimum 15 minutes and the product is not corrosive).

MSF requirements

Simple but multifunctional table, entirely mechanical (functioning without electricity) equipped with DIN rails and standard accessories for general, gynaecological and abdominal surgery in the operating theatre.

Perfectly suitable for emergency programmes and surgical assistance programmes in remote area.
