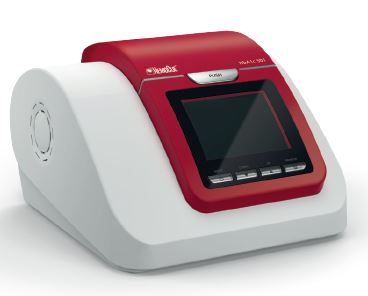

CLINICAL CHEMISTRY ANALYSER (HemoCue HbA1c 501)

Definition

An automated portable device for the quantitative measurement of glycated haemoglobin (HbA1c) in whole blood. The measurement is based on the boronate affinity method and results are measured photometrically.

HbA1c values reflect the glucose concentrations for the previous 8-12 weeks and are therefore an indicator of the long-term glycaemic control in diabetes. An elevated HbA1c indicates poor glycaemic control. HbA1c is expressed as percentage of the total haemoglobin concentration: HbA1c %.

Specifications

Portable photometric analyzer‌ measuring glycated haemoglobin (HbA1c) in whole blood with specific test cartridges.

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Parameter: glycated haemoglobin (HbA1c)
  • Factory calibrated, with 2 possible measuring units:
    • in mmol/mol (according to IFCC/ International Federation of Clinical Chemistry and Laboratory Medicine) or
    • HbA1c% (according to NGSP/National Glycohemoglobin Standardization Program); NGSP certified
  • Measurement range:
    • 20-130 mmol/mol (IFCC)
    • 4.0-14.0% (NGSP)
  • Time to result: 5 minutes
  • Operating temperature: 17-32°C officially validated (around 50°C, complaints have been reported; no complaints reported at 40°C)
  • Quality control:
    • internal quality control with "Daily check" cartridge,
    • internal quality control with "Monthly check" cartridge,
    • external 3 level controls

Dimensions

198x217x136mm

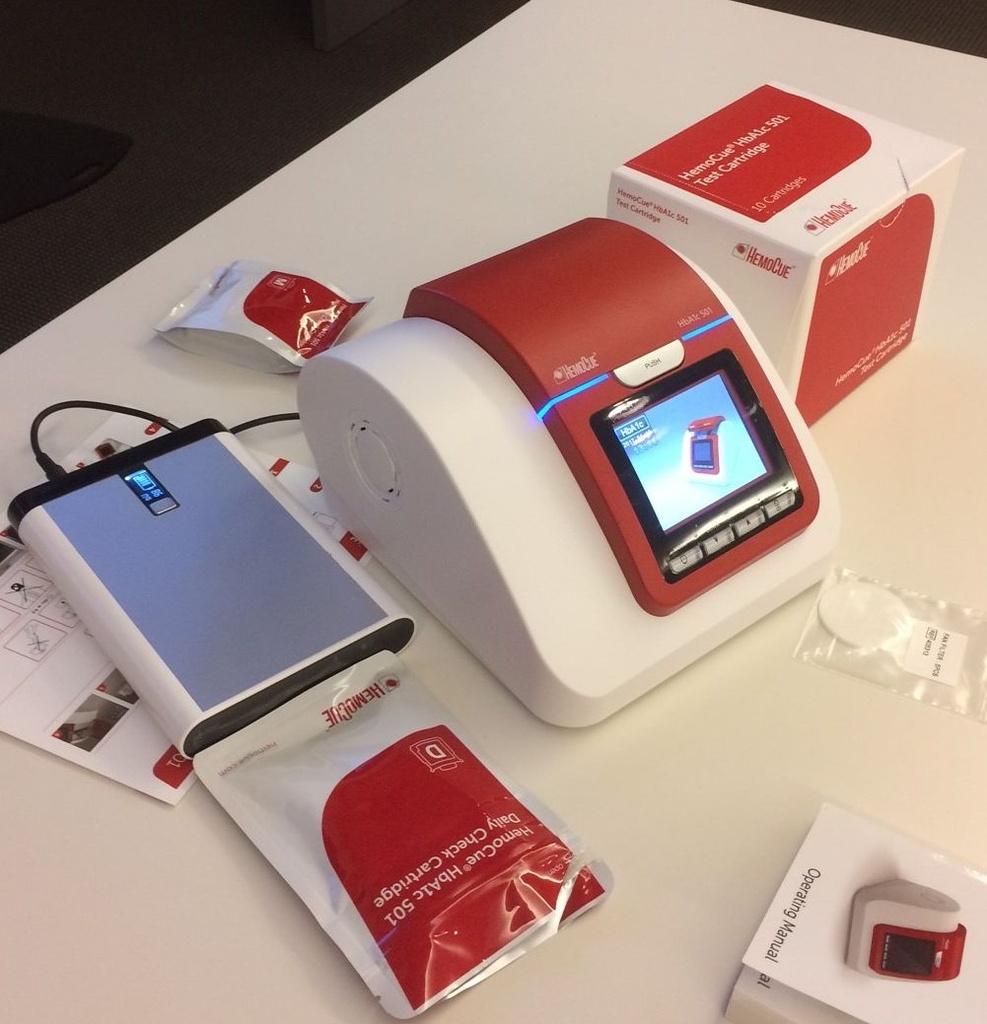

Supplied with the Article

  • External 9V Lithium battery
  • Power adaptor
  • Fan filters
  • 1 Daily check cartridge
  • 1 Monthly check cartridge

To be Ordered Separately

  • 3 level controls solutions [ELAECCHT802/803/804] to be used 1x/week

Important

  • Daily check [ELAECCHA801] can be reused as long as it is not broken or expired. Average consumption 1 cartridge / 2 years.
  • Monthly check [ELAECCHC801] is not reusable. Average consumption 1 cartridge / month.

In case needed an external portable battery can be purchased locally.

Instructions for use

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Storage

Store between 10 and 35°C

(Cf Introduction: Thermosensitive products)

MSF requirements

Reserved for programmes taking care of diabetes patients

Some restricted information has been hidden. Sign in to see this information
