CONTROL PANEL (Digital Multi Control 200/200A GX)
Form

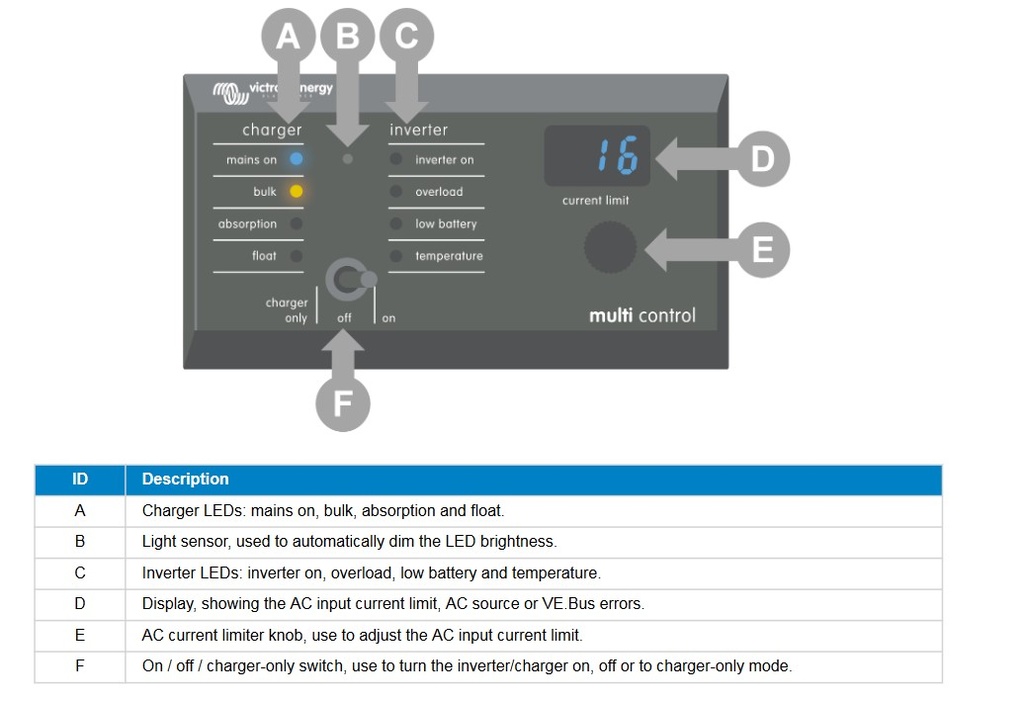

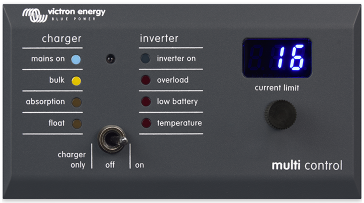

A control panel with 8 LEDs wich replicate the inverter/charger LEDs, a 7-segment display showing the AC input current and a power mode switch wich can be used to turn the inverter/charger system on, off or to charger-only mode. The articles comes with 4 screws for mounting. Per piece.
Fit
The control panel is compatible with these Victron inverter/charger models:
- MultiCompact.
- MultiPlus, MultiPlus-II and MultiPlus-II GX.
- Quattro and Quattro-II.
- EasySolar and EasySolar-II GX.
To install the control panel use an RJ45 UTP cable to connect the control panel to the inverter/charger.
Function
The control panel is used to remotely view and adjust AC input currents and turn on and off the Multi or Quattro.
